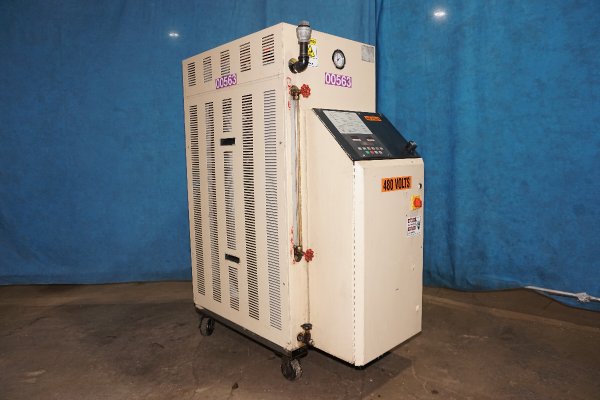

Used Sterlco Model: M2B-2016-U1 36 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusSold
ManufacturerSterlco
ModelM2B-2016-U1
Size36 kW
Inventory NumberDCM-5684

Sterlco - M2B-2016-U1 36 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, M2B+ Microprocessor Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5684.

Features & Accessories

  • Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
  • New in 2016
  • Sterlco M2B+ Microprocessor Controller
  • Alarms for low fluid pressure, pump rotation, over temperature and Set points for Process, High Alarm, Low Alarm
  • Displays for Process Temperature, Return Temperature and Temperature Difference
  • Equipped with Water Cooling Circuit, Built-in pump pressure relief valve and Unit is mounted on casters for easy movement

Item Specifications for DCM-5684

USMetric
Main Heater Power (Zone #1):36 KW36 kW
Pump Motor Size (Zone #1):2 HP @1,755 RPM1.47 KW @1,755 RPM
Flow Rate (Zone #1):24 gallons per minute91 liters per minute
Connection size/type:1 inch NPT1 inch NPT
Maximum Operating Temperature:450 degrees F232 degrees C
Overall Size (L x W x H):55 x 25 x 63 inches1397 x 635 x 1600 mm
Full Load Amps @ 480/3/60:43.30 AMPS23.30 AMPS
Approximate Shipping Weight:950 pounds430 kG

Video

Documents

Description

Used, Sterlco Model M2B-2016-U1 36 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: New in 2016, Sterlco M2B+ Microprocessor Controller, Alarms for low fluid pressure, pump rotation, over temperature and Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference, Equipped with Water Cooling Circuit, Built-in pump pressure relief valve and Unit is mounted on casters for easy movement, M2B+ Microprocessor controls, second Hand, DCM-5684
