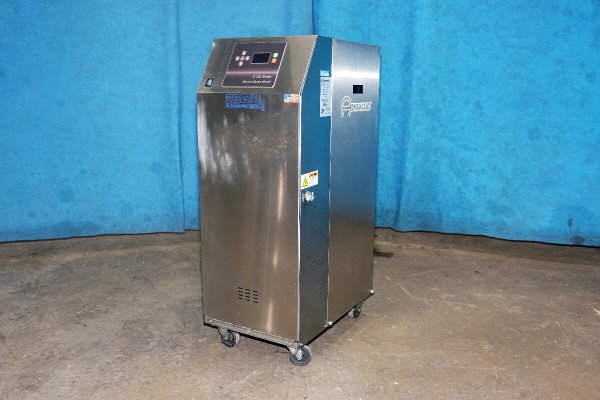

Used Advantage Model: RK-1245H-G500 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit
1 / 39| Status | Sold |
|---|---|
| Manufacturer | Advantage |
| Model | RK-1245H-G500 |
| Size | 12 kW |
| Inventory Number | DCM-5669 |
Advantage - RK-1245H-G500 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit, Regal G500 Series Microprocessor Control Instrument Controls
Questions? Call (847) 360-9170 and mention DCM-5669.
Features & Accessories
- Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
- New in 2018!
- Regal G500 Series Microprocessor Control Instrument with Easy to use menu driven controller with LCD display
- Home screen includes continuous set point and to process temperature
- Low pressure, high flow centrifugal pump
- Stainless steel enclosure panels
- Unit on casters for easy movement
Item Specifications for DCM-5669
| US | Metric | |
| Main Heater Power (Zone #1): | 12 KW | 12 KW |
| Pump Motor Size (Zone #1): | 1-1/2 HP @ 3,500 RPM | 1.1 KW @ 3,500 RPM |
| Flow Rate (Zone #1): | 45 gallons per minute @ 26 psi | 170 liters per minute @ 1.79 BAR |
| Connection size/type (Zone #1): | 1 inch NPT | 25.4 mm NPT |
| Maximum Operating Temperature: | 500 degrees F | 260 degrees C |
| Overall Size (L x W x H): | 38 x 16 x 44 inches | 965 x 407 x 1118 mm |
| Weight: | 312 pounds | 142 kg |
| Full Load Amps @ 460/3/60: | 16.54 amps | 16.54 amps |
Video
Documents
Description
Used, Advantage Model RK-1245H-G500 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit For_Sale, Features Include: New in 2018!, Regal G500 Series Microprocessor Control Instrument with Easy to use menu driven controller with LCD display, Home screen includes continuous set point and to process temperature, Low pressure, high flow centrifugal pump, Stainless steel enclosure panels, Unit on casters for easy movement, Regal G500 Series Microprocessor Control Instrument controls, second Hand, DCM-5669
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
