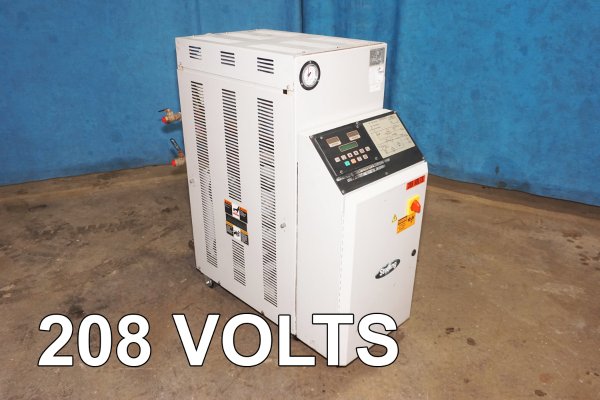

Used Sterlco Model: M2B2016-M 18 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit
1 / 40| Status | Sold |
|---|---|
| Manufacturer | Sterlco |
| Model | M2B2016-M |
| Size | 18 kW |
| Inventory Number | DCM-5661 |
Sterlco - M2B2016-M 18 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit, Sterlco M2B Microprocessor Controls
Questions? Call (847) 360-9170 and mention DCM-5661.
Features & Accessories
- Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
- Sterlco M2B Microprocessor Controller
- Alarms for low fluid pressure, pump rotation, over temperature
- Set points for Process, High Alarm, Low Alarm
- Displays for Process Temperature, Return Temperature and Temperature Difference
- Built-in pump pressure relief valve
- Feel free to call us with your questions about this unit
Item Specifications for DCM-5661
| US | Metric | |
| Main Heater Power (Zone #1): | 18 KW | 18 KW |
| Pump Motor Size (Zone #1): | 1 HP @ 1,725 RPM | .75 KW @ 1,725 RPM |
| Flow Rate (Zone #1): | 18 gallons per minute | 68.1 liters per minute |
| Connection size/type: | 1 inch NPT | 1 inch NPT |
| Maximum Operating Temperature: | 550 degrees F | 288 degrees C |
| Full Load Amps @ 208/3/60: | 56.5 AMPS | 56.5 AMPS |
| Catalog Overall Size (L x W x H): | 42 x 19 x 46 inches | 1066.8 x 482.6 x 1168.4 mm |
| Shipping Dimensions: (L x W x H): | 56 x 36 x 52 inches | 1422 x 914 x 1321 mm |
| Approximate Shipping Weight: | 541 pounds | 245 kg |
Video
Documents
Description
Used, Sterlco Model M2B2016-M 18 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit For_Sale, Features Include: Sterlco M2B Microprocessor Controller, Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference, Built-in pump pressure relief valve, Feel free to call us with your questions about this unit, Sterlco M2B Microprocessor controls, second Hand, DCM-5661
