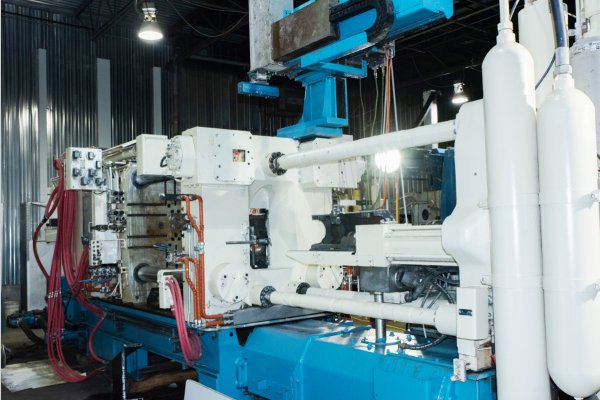

Used Buhler Model: Evolution B 66 D 674 Metric Tons (743 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 51| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Buhler |
| Model | Evolution B 66 D |
| Size | 674 Metric Tons (743 US Tons) |
| Inventory Number | DCM-5651 |
Buhler - Evolution B 66 D 674 Metric Tons (743 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Buhler DataNet Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5651.
Features & Accessories
- Fully Automated Cell including: Die Cast Machine, Gerlieva High Speed Linear Sprayer, ABB IRB 4600 Robot Extractor, Weco 35 Ton Trim Press, Striko Westofen W650 SL ProDos XP Aluminum Dosing Furnace and Fondarex HP Premium C Vacuum system
- Updated to Buhler DataNet Control System
- Twin Cylinder Hydraulic Bumper Plate Ejection
- Three (3) Auxiliary Hydraulic Core Circuits, One of Fixed Platen, two (2) on Moving Platen
- Floor Mounted Power Operator and Helper Side Safety Doors
- Hydraulic Motorized Die Height Adjustment System
- Dual Fully Automatic Tie Bar Pulling System with Electronic Tie Bar Strain Gauges
Item Specifications for DCM-5651
| US | Metric | |
| Injection Force, Dynamic - Intensified: | 44.73 - 123.19 tons | 290 - 700 kn (29.5 - 71.3 metric tons) |
| Injection Positions: | Center to -13.77 inches | Center to -300 mm |
| Plunger Diameter (min - max) | 3.25 - 5.00 inches | 70 - 110 mm |
| Plunger Stroke | 35.4 inches | 600 mm |
| Projected area (min - Maximum) | 56.1 to 138.5 Square Inches | 362 - 894 cm2 |
| Ejector Force/Stroke: | 25.29 tons - 6.88 inches | 225 kN (22.9 metric tons) - 175 mm stroke |
| Tie Bar Diameter: | 5.9 inches | 150 mm |
| Maximum Locking Force | 743 Tons | 6615 kN (674 metric tons) |
| Stationary Platen Size (H x V) | 65.7 x 65.7 inches | 1,530 x 1,657 |
| Tie Bar Clearance | 30.7 x 30.7 inches | 780 x 780 mm |
| Die Height (minimum - maximum) | 11.8 - 35.4 inches | 300 - 900 mm |
| Die Opening Stroke | 31.49 inches | 800 mm |
Video
Documents
Description
Used, Buhler Model Evolution B 66 D 674 Metric Tons (743 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Updated to Buhler DataNet Control System, Twin Cylinder Hydraulic Bumper Plate Ejection, Three (3) Auxiliary Hydraulic Core Circuits, One of Fixed Platen, two (2) on Moving Platen, Floor Mounted Power Operator and Helper Side Safety Doors, Hydraulic Motorized Die Height Adjustment System, Dual Fully Automatic Tie Bar Pulling System with Electronic Tie Bar Strain Gauges, Buhler DataNet controls, second Hand, DCM-5651
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
