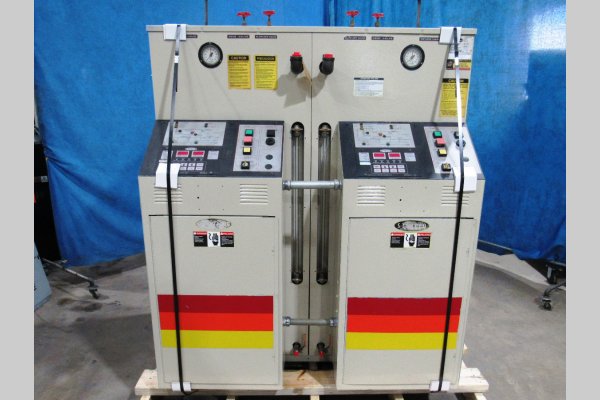

Used Sterlco Model: M2B9026-JO 72 kw (36 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit

StatusSold
ManufacturerSterlco
ModelM2B9026-JO
Size72 kw (36 kw per zone)
Inventory NumberDCM-5646

Sterlco - M2B9026-JO 72 kw (36 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit, Sterling Sterlco M2B Microprocessor Control System Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5646.

Features & Accessories

  • Sterling Sterlco M2B Microprocessor Control System Controllers
  • Alarms for low fluid pressure, pump rotation, over temperature
  • Set points for Process, High Alarm, Low Alarm
  • Displays for Process Temperature, Return Temperature and Temperature Difference
  • Built-in pump pressure relief valve

Item Specifications for DCM-5646

USMetric
TOTAL KW:72 kW72 kW
Watts Per Heater (4 each):18 KW per heater/36 kw per zone18 KW per heater/36 kw per zone
Pump Motor Size Zone #1:3 HP2.25 kw
Flow Rate Zone #1:71-90 gallons per minute265-341 liters per minute
Pump Motor Size Zone #2:3 HP2.25 kw
Flow Rate Zone #2:71-90 gallons per minute265-341 liters per minute
Process Connection Size/Type:2 inch NPT2 inch NPT
Maximum Operating Temperature:500 degrees F260 degrees C
Overall Size (L x W x H):41 x 20 x 47 inches1041 x 508 x 1193 mm
Power:96 Amps @ 460/3/6096 Amps @ 460/3/60
Approximate Shipping Weight:2,000 lbs909 kg

Description

Used, Sterlco Model M2B9026-JO 72 kw (36 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit For_Sale, Features Include: Sterling Sterlco M2B Microprocessor Control System Controllers, Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference, Built-in pump pressure relief valve, Sterling Sterlco M2B Microprocessor Control System controls, second Hand, DCM-5646
