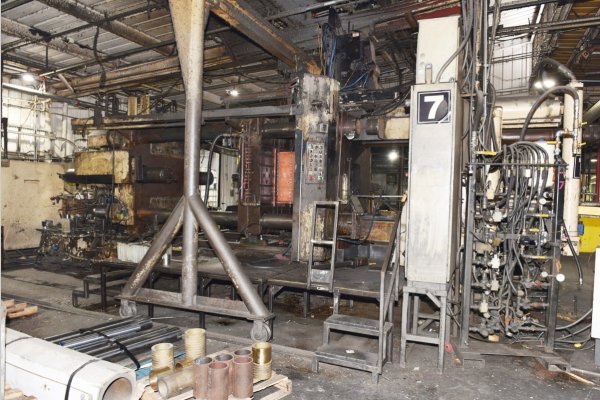

Used HPM Model: II-1200-A 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerHPM
ModelII-1200-A
Size1200 Ton
Inventory NumberDCM-5645

HPM - II-1200-A 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 PLC Control with 10 Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-5645.

Features & Accessories

  • Note: Machine is in the process of the linkage being rebuilt - this work will need to be completed by the buyer
  • Top Operator Side Automatic Tie Bar Puller System
  • Hydraulic Powered Motorized Die Height Adjustment
  • Hydraulic Bumper Plate Ejection System
  • Trabon Automatic Lubrication System
  • Auxiliary Hydraulic Side Core Circuits

Item Specifications for DCM-5645

USMetric
Locking Force:1200 tons1090 tons
Tie Bar Diameter:9 inches228 mm
Clearance Between Tie Bars:45 x 45 inches1143 x 1143 mm
Die Thickness (minimum - maximum):24 - 50 inches609 - 1270 mm
Die Stroke (minimum - maximum):24 - 30 inches609 - 762 mm
Moving Platen Size:69 x 69 inches1752 x 1752 mm
Shot Positions (removable Insert):Center, -9, -12 below centerCenter, -228.6, -304.8 mm
Injection Cylinder Stroke:32 - 38 inches812 - 965 mm
Ejector Stroke & Force:5 inches & 31.9 tons127 mm & 29 tons
Main Motor Power:75 HP56 kw
Machine Size:36 x 10.3 x 12.5 feet10.97 x 3.15 x 3.81 meters
Machine Weight:160,000 pounds72,727 kg

Description

Used, HPM Model II-1200-A 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Top Operator Side Automatic Tie Bar Puller System, Hydraulic Powered Motorized Die Height Adjustment, Hydraulic Bumper Plate Ejection System, Trabon Automatic Lubrication System, Auxiliary Hydraulic Side Core Circuits, Allen Bradley SLC 5/03 PLC Control with 10 controls, second Hand, DCM-5645

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
