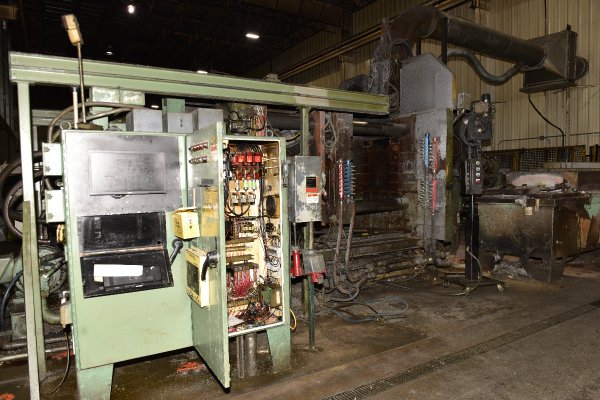

Used Ex-Cell-O B&T Model: DC-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 13| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Ex-Cell-O B&T |
| Model | DC-800-A |
| Size | 800 Ton |
| Inventory Number | DCM-5644 |
Ex-Cell-O B&T - DC-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/04 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5644.
Features & Accessories
- Rebuilt with Top Helper-side Automatic Tie Bar Puller, Visi-Trak Sure-Shot Closed Loop Servo Shot Control System
- Two (2) Auxiliary Hydraulic Moving Core Circuits and Twin Cylinder Hydraulic Bumper Plate
- Multiplier Cylinder with Piston Bottle and Air Safety Ratchet
- Electric Motorized Die Height Adjustment System and Trabon Automatic Linkage Lubrication System
- Top Operator Side Automatic Tie Bar Puller
Item Specifications for DCM-5644
| US | Metric | |
| Locking Force: | 800 tons | 725.75 tons |
| Tie Bar Diameter: | 7 inches | 177.8 mm |
| Clearance between Tie Bars (H x V): | 37 x 37 inches | 889 x 889 mm |
| Moving Platen Size (H x V x T): | 48 x 48 x 9 inches | 1219 x 1219 x 228 mm |
| Stationary (Fixed) Platen Size (H x V x T): | 53 x 48 x 10 inches | 1346 x 1219 x 254 mm |
| Die Thickness (minimum to maximum): | 12 - 36 inches | 304 - 914 mm |
| Die Stroke: | 16 - 22 inches | 406 - 558 mm |
| Shot Cylinder Stroke: | 22 - 27 inches | 558 - 685 mm |
| Shot Positions: | Center, -6 & - 9 inches below center | 0, -152, -228 mm below center |
| Power: | 480/3/60 | 480/3/60 |
| Overall Size (W x L x H): | 8 x 26 x 9.2 feet | 2.13 x 6.1 x 2.74 meters |
| Approximate Weight: | 72,000 pounds | 27,215 KG |
Description
Used, Ex-Cell-O B&T Model DC-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Two (2) Auxiliary Hydraulic Moving Core Circuits and Twin Cylinder Hydraulic Bumper Plate, Multiplier Cylinder with Piston Bottle and Air Safety Ratchet, Electric Motorized Die Height Adjustment System and Trabon Automatic Linkage Lubrication System, Top Operator Side Automatic Tie Bar Puller, Allen Bradley PLC 5/04 controls, second Hand, DCM-5644
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
