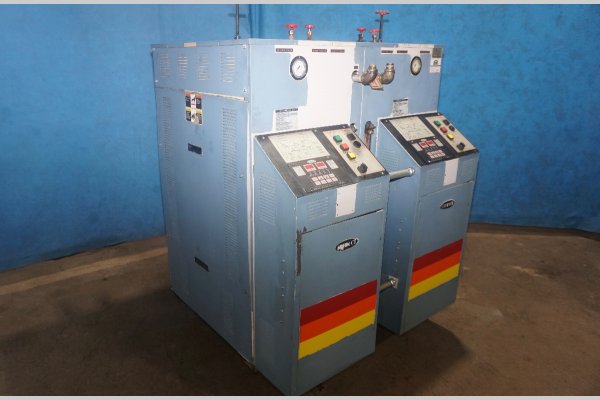

Used Sterlco Model: M2B9026-JO 96 kw (48 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit
1 / 50| Status | Sold |
|---|---|
| Manufacturer | Sterlco |
| Model | M2B9026-JO |
| Size | 96 kw (48 kw per zone) |
| Inventory Number | DCM-5631 |
Sterlco - M2B9026-JO 96 kw (48 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit, Sterling Sterlco M2B Microprocessor Control System Controls
Questions? Call (847) 360-9170 and mention DCM-5631.
Features & Accessories
- Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
- Sterling Sterlco M2B Microprocessor Control System Controllers
- Alarms for low fluid pressure, pump rotation, over temperature
- Set points for Process, High Alarm, Low Alarm
- Displays for Process Temperature, Return Temperature and Temperature Difference
- Built-in pump pressure relief valve
Item Specifications for DCM-5631
| US | Metric | |
| TOTAL KW: | 96 KW | 96 KW |
| Main Heater Power Zone #1: | 48 KW | 48 KW |
| Pump Motor Size Zone #1: | 3 HP | 2.25 kw |
| Flow Rate Zone #1: | 71-90 gallons per minute | 265-341 liters per minute |
| Main Heater Power Zone #2: | 48 KW | 48 KW |
| Pump Motor Size Zone #2: | 3 HP | 2.25 kw |
| Flow Rate Zone #2: | 71-90 gallons per minute | 265-341 liters per minute |
| Process Connection Size/Type: | 2 inch NPT | 2 inch NPT |
| Maximum Operating Temperature: | 500 degrees F | 260 degrees C |
| Overall Size (L x W x H): | 41 x 20 x 47 inches | 1041 x 508 x 1193 mm |
| Power: | 125 Amps @ 460/3/60 | 125 Amps @ 460/3/60 |
| Approximate Shipping Weight: | 2,000 lbs | 909 kg |
Video
Documents
Description
Used, Sterlco Model M2B9026-JO 96 kw (48 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit For_Sale, Features Include: Sterling Sterlco M2B Microprocessor Control System Controllers, Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference, Built-in pump pressure relief valve, Sterling Sterlco M2B Microprocessor Control System controls, second Hand, DCM-5631
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
