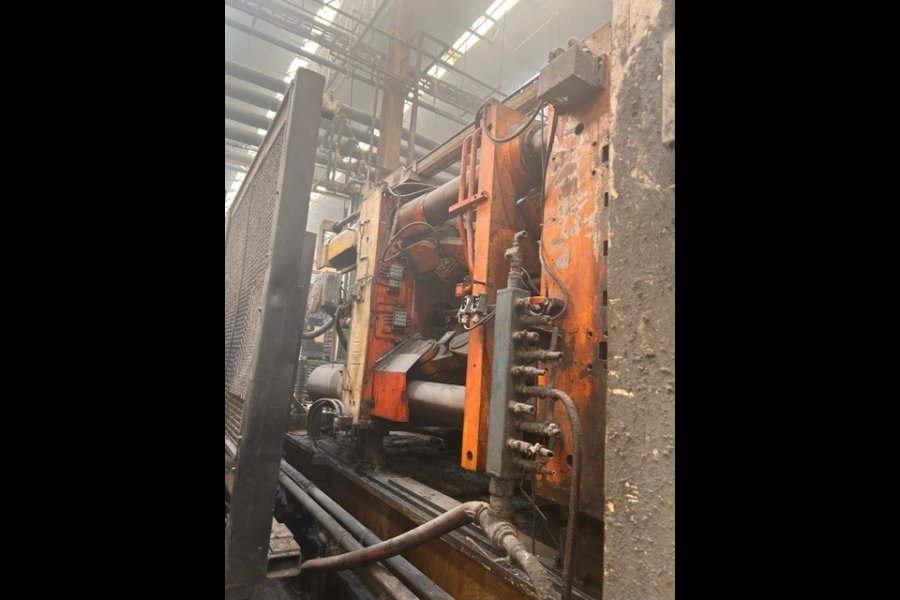

Used Prince Model: 836 CCA 850 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerPrince
Model836 CCA
Size850 U.S. Tons
Inventory NumberDCM-5626

Prince - 836 CCA 850 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley Control Logix Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-5626.

Features & Accessories

  • Binary II shot system
  • Equipped with Prince Prince Binary II shot control
  • Allen Bradley Control Logix
  • Twin Cylinder Hydraulic Bumper Plate Ejection System
  • Fully Automatic Top Operator Side Tie Bar Pulling System
  • Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Tonnage Adjustment System
  • Two (2) auxiliary hydraulic side core circuits one (1) on moving platen one (1) on stationary platen, Hydraulic Shot Position Adjustment

Item Specifications for DCM-5626

USMetric
Rated Tonnage:900 tons816.5 tons
Tie Bar Diameter:7.5 inches190.5 mm
Clearance Between Tie bars:36.5 x 36.5 inches927.1 x 927.1 mm
Front Platen Size (T x W x H):12.75 x 60 x 70 inches323.9 x 1524 x 1524
Moving Platen Size (T x W x H):11.75 x 60 x 60 inches298.5 x 1524 x 1524
Die Thickness (min. - max.):20 - 40 inches508 - 1016 mm
Die Stroke:22 inches558.8 mm
Ejection Stroke:6 inches152.4
Injection Cylinder Bore/Stroke:8 x 30 inches203.2 mm x 762 mm
Motor Size:75 HP55.16 kw
Machine Size (L x W x H):28 x 8 x 11 feet8.5 x 2.4 x 3.4 meters

Documents

Description

Used, Prince Model 836 CCA 850 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Equipped with Prince Prince Binary II shot control, Allen Bradley Control Logix, Twin Cylinder Hydraulic Bumper Plate Ejection System, Fully Automatic Top Operator Side Tie Bar Pulling System, Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Tonnage Adjustment System, Two (2) auxiliary hydraulic side core circuits one (1) on moving platen one (1) on stationary platen, Hydraulic Shot Position Adjustment, Allen Bradley Control Logix controls, second Hand, DCM-5626

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
