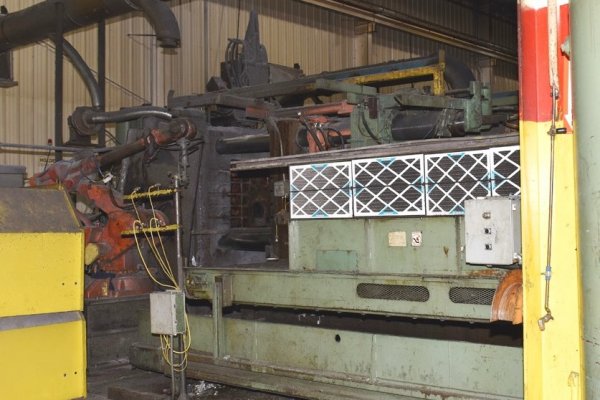

Used Prince Model: 940 CCA 1000 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used Prince Model: 940 CCA 1000 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 14
StatusSold
ManufacturerPrince
Model940 CCA
Size1000 Tons
Inventory NumberDCM-5601

Prince - 940 CCA 1000 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/20 Solid State Programmable Controls with Monitor Output for HMI DisplayPanelView 900 and Visi-Trak True-Trak 20/20 Shot Monitoring System Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDF

Questions? Call (847) 360-9170 and mention DCM-5601.

Features & Accessories

  • Machine was rebuilt and upgraded to Visi-Trak Sure-Trak2 Shot Control and Montioring System with Servo-Valve
  • Prince Automatic Tie Bar Pulling System on Top Helper Side Tie Bar
  • 3 Core Circuits on Moving Platen and One (1) on Fixed Platen
  • Insert For Shot Position Center, -3, and -9 inch Below Center Shot Positions
  • Twin Cylinder Hydraulic Bumper Plate Ejection System
  • Trabon Type Automatic Lubrication System
  • Hydrauilc Powered Motorized Die Height Adjsutment System

Item Specifications for DCM-5601

USMetric
Rated Tonnage - Balance Load1,000 tons909 tons
Tie Bar Diameter8 inches203.2 mm
Clearance Between Tie bars40 inches1016 mm
Front Platen Size (T x W x H)15.5 x 64 x 74 inches393 x 1625.6 x 1879.6 mm
Moving Platen Size (T x W x H)13.75 x 64 x 64 inches349.3 x 1625.6 x 1625.6 mm
Die Thickness (min. - max.)18 - 38 inches457 - 965 mm
Die Stroke25 inches635 mm
Stot Cylinder7.0 inch bore, 4.0 inch rod, 26 - 32 inch stroke178 mm bore, 101 mm rod, 660 - 812 mm stroke
Ejection Stroke/Force6 inches x 21.5 tons152 mm x 19.5 tons
Motor Size100 hp74.6 kw
Machine Size (L x W x H)29.9 x 8.6 x 11 feet9.1 x 2.6 x 3.4 m
Machine Weight120,000 pounds54,545 kg

Description

Used, Prince Model 940 CCA 1000 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Prince Automatic Tie Bar Pulling System on Top Helper Side Tie Bar, 3 Core Circuits on Moving Platen and One (1) on Fixed Platen, Insert For Shot Position Center, -3, and -9 inch Below Center Shot Positions, Twin Cylinder Hydraulic Bumper Plate Ejection System, Trabon Type Automatic Lubrication System, Hydrauilc Powered Motorized Die Height Adjsutment System, Allen Bradley PLC 5/20 Solid State Programmable Controls with Monitor Output for HMI DisplayPanelView 900 and Visi-Trak True-Trak 20/20 Shot Monitoring System controls, second Hand, DCM-5601

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
