SOLD

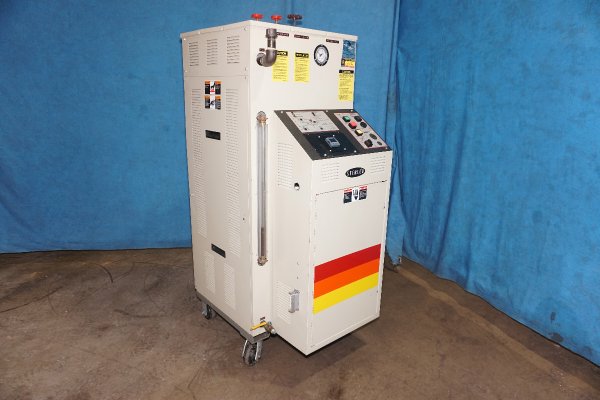

Used Sterlco Model: G9016-J1 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusSold
ManufacturerSterlco
ModelG9016-J1
Size12 KW
Inventory NumberDCM-5596

Sterlco - G9016-J1 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3216 Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5596.

Features & Accessories

  • Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
  • Eurotherm 3216 Controller
  • Alarms for low fluid pressure, pump rotation, over temperature
  • Set points for Process, High Alarm, Low Alarm
  • Displays for Process Temperature, Return Temperature and Temperature Difference
  • Water Cooling Circuit

Item Specifications for DCM-5596

USMetric
Main Heater Power (Zone #1):12 KW12 KW
Pump Motor Size (Zone #1):1 HP.75 KW
Maximum Operating Temperature:550 degrees F288 degrees C
Flow Rate (Zone #1):18 - 30 gallons per minute68 - 113 liters per minute
Connection size/type:1 inch NPT1 inch NPT
Shipping Size (L x W x H):48 x 42 x 73 inches1219 x 1067 x 1854 mm
Net Weight:678 pounds308 kg
Full Load Amps @ 460/3/60:16 amp18 amp

Video

Documents

Description

Used, Sterlco Model G9016-J1 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Eurotherm 3216 Controller, Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference, Water Cooling Circuit, Eurotherm 3216 controls, second Hand, DCM-5596
