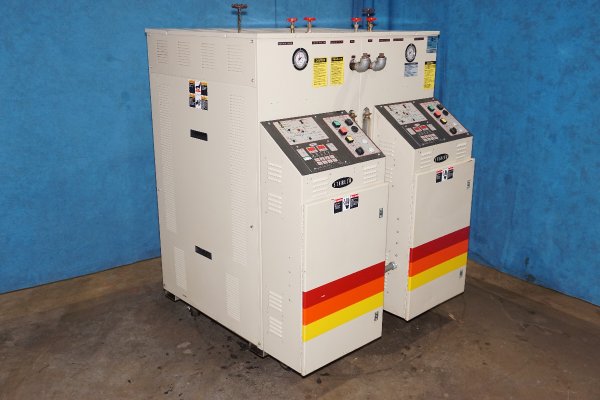

Used Sterlco Model: M2B9026-J1 96 kw (48 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusSold
ManufacturerSterlco
ModelM2B9026-J1
Size96 kw (48 kw per zone)
Inventory NumberDCM-5533

Sterlco - M2B9026-J1 96 kw (48 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Sterling M2B Controller Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5533.

Features & Accessories

  • Sterling Hot Oil Process Heater Temperature Control Unit with Sterlco M2B Controllers
  • Alarms for low fluid pressure, pump rotation, over temperature
  • Set points for Process, High Alarm, Low Alarm
  • Displays for Process Temperature, Return Temperature and Temperature Difference

Item Specifications for DCM-5533

USMetric
Main Heater Power Zone #1:48 KW48 KW
Pump Motor Size Zone #1:3 HP2.25 kw
Flow Rate Zone #1:71-90 gallons per minute265-341 liters per minute
Main Heater Power Zone #2:48 KW48 KW
Pump Motor Size Zone #2:3 HP2.25 kw
Flow Rate Zone #2:71-90 gallons per minute265-341 liters per minute
Process Connection Size/Type:2 inch NPT2 inch NPT
Maximum Operating Temperature:500 degrees F260 degrees C
Overall Size (L x W x H):41 x 20 x 47 inches1041 x 508 x 1193 mm
Power:126 Amps @ 460/3/60126 Amps @ 460/3/60
Approximate Shipping Weight:2,000 lbs909 kg

Video

Description

Used, Sterlco Model M2B9026-J1 96 kw (48 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Sterling Hot Oil Process Heater Temperature Control Unit with Sterlco M2B Controllers, Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference, Sterling M2B Controller controls, second Hand, DCM-5533
