SOLD

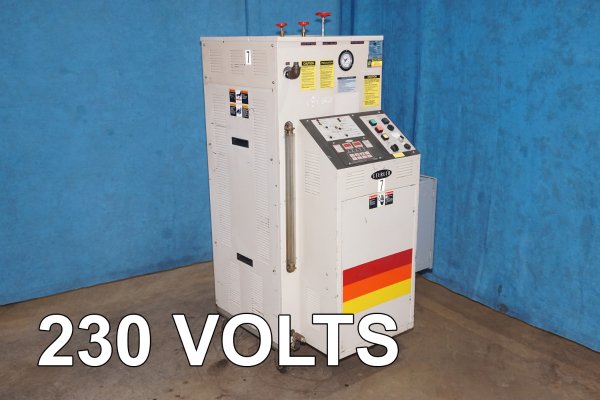

Used Sterlco Model: M2B9016-J1 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusSold
ManufacturerSterlco
ModelM2B9016-J1
Size12 KW
Inventory NumberDCM-5510

Sterlco - M2B9016-J1 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Sterling Sterlco M2B Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5510.

Features & Accessories

  • Sterling Sterlco M2B Controller
  • Alarms for low fluid pressure, pump rotation, over temperature
  • Set points for Process, High Alarm, Low Alarm
  • Displays for Process Temperature, Return Temperature and Temperature Difference
  • Water Cooling Circuit

Item Specifications for DCM-5510

USMetric
Main Heater Power (Zone #1):12 KW12 KW
Pump Motor Size (Zone #1):1 HP.75 KW
Maximum Operating Temperature:550 degrees F287.8 degrees C
Flow Rate (Zone #1):24 gallons per minute90.8 liters per minute
Connection size/type:1 inch NPT1 inch NPT
Overall Size (L x W x H):33 x 25 x 55 inches383 x 635 x 1397 mm
Net Weight:675 pounds306 kg
Full Load Amps @ 230/3/60:33 amp33 amp

Video

Documents

Description

Used, Sterlco Model M2B9016-J1 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Sterling Sterlco M2B Controller, Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference, Water Cooling Circuit, Sterling Sterlco M2B controls, second Hand, DCM-5510
