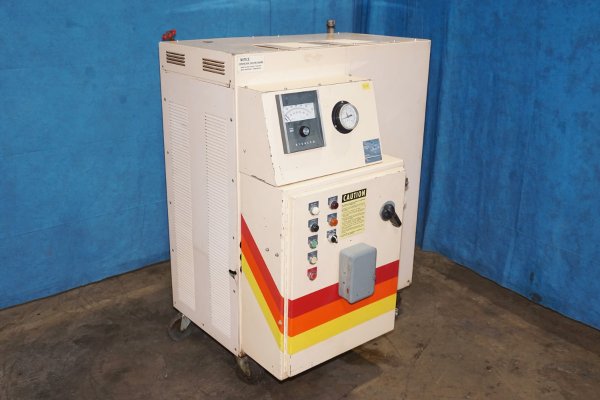

Used Sterlco Model: F6016-DX 72 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 32| Status | Sold |
|---|---|
| Manufacturer | Sterlco |
| Model | F6016-DX |
| Size | 72 KW |
| Inventory Number | DCM-5491 |
Sterlco - F6016-DX 72 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Sterlco 400 Series Analog Controls
Questions? Call (847) 360-9170 and mention DCM-5491.
Features & Accessories
- Sterlco 400 Series Analog Controller
- Unit Mounted on Casters for easy movement in your shop
- Water Cooling Circuit
Item Specifications for DCM-5491
| US | Metric | |
| Main Heater Power (2 Heaters, 36 kW each): | 72 Kw Total | 72 Kw Total |
| Pump Motor Size: | 3 HP | 1.49 KW |
| Hot Oil Flow Rate: | 24 gallons per minute | 90.8 liters per minute |
| Process Connection size/type: | 1 inch NPT | 25.4 mm NPT |
| Maximum Operating Temperature: | 550 F | 287.7 C |
| Equipped with Cooling Circuit: | Yes, Tube-in-Shell | Yes, Tube-in-Shell |
| Overall Size (L x W x H): | 55 x 55 x 50 inches | 1397 x 1397 x 1270 mm |
| Full Load Amps @ 480/3/60: | 92 amp | 92 amp |
Video
Documents
- Sterlco 6026 Service and Instruction ManualPDF · 6.1 MB
Description
Used, Sterlco Model F6016-DX 72 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Sterlco 400 Series Analog Controller, Unit Mounted on Casters for easy movement in your shop, Water Cooling Circuit, Sterlco 400 Series Analog controls, second Hand, DCM-5491
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
