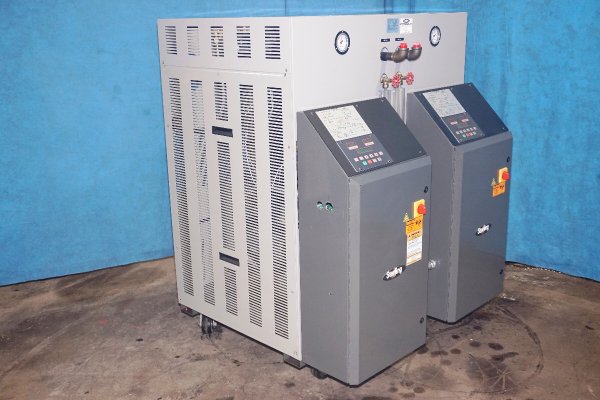

Used Sterlco Model: M2B-2026-U1 72 KW (36 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit

StatusSold
ManufacturerSterlco
ModelM2B-2026-U1
Size72 KW (36 kw per zone)
Inventory NumberDCM-5490

Sterlco - M2B-2026-U1 72 KW (36 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, M2B+ Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5490.

Features & Accessories

  • Sterlco M2B+ Microprocessor Control - User Friendly HMI
  • Alarms for low fluid pressure, pump rotation, over temperature Set points for Process, High Alarm, Low Alarm
  • Displays for Process Temperature, Return Temperature and Temperature Difference
  • Equipped with Thermostatically Controlled Tube-in-Shell Heat Exchanger Water Cooling Circuit
  • Unit Mounted on Casters for easy movement in your shop

Item Specifications for DCM-5490

USMetric
Total Hot Oil Heating Power:72 Kw72 Kw
Main Heater Power per Zone (Zone 1, 2):36 kw36 kw
Pump Motor Size & RPM (Zone 1, 2):2 HP @ 1,725 RPM1.49 KW @ 1,725 RPM
Hot Oil Flow Rate (Zone 1, 2):24 gallons per minute90.8 liters per minute
Process Connection size/type (Zone 1, 2,):1 inch NPT25.4 mm NPT
Maximum Operating Temperature:550 F287.7 C
Equipped with Cooling Circuit:Yes, Tube-in-ShellYes, Tube-in-Shell
Overall Size (L x W x H):55 x 55 x 50 inches1397 x 1397 x 1270 mm
Full Load Amps @ 480/3/60:92.9 amp92.9 amp

Video

Documents

Description

Used, Sterlco Model M2B-2026-U1 72 KW (36 kw per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Sterlco M2B+ Microprocessor Control - User Friendly HMI, Alarms for low fluid pressure, pump rotation, over temperature Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference, Equipped with Thermostatically Controlled Tube-in-Shell Heat Exchanger Water Cooling Circuit, Unit Mounted on Casters for easy movement in your shop, M2B+ controls, second Hand, DCM-5490
