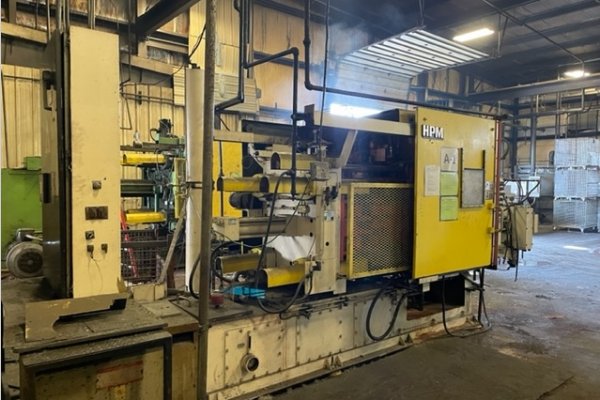

Used HPM Model: II-400-A 400 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerHPM
ModelII-400-A
Size400 U.S. Tons
Inventory NumberDCM-5459

HPM - II-400-A 400 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Solid State Controls Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-5459.

Features & Accessories

  • Rebuilt and updated by HPM Remanufacturing in 2006. Inspect Under-power on Customer's Floor. NOTE: Customer states that the die close valve has an intermittent sticking problem and might need to be rebuilt or replaced.
  • Safety Ratchet Device, Manual Operator & Helper Safety Door
  • Allen Bradley SLC 5/03 Solid State Controls With Panelview 600 HMI
  • Hydraulic Bumper Platen Ejection System
  • One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen & One (1) on Stationary Platen
  • Electric Motorized Die Height Automatic System

Item Specifications for DCM-5459

USMetric
Locking Force:400 tons362.8 tons
Tie Bar Diameter:5 inches127 mm
Clearance Between Tie Bars:24 x 24 inches609.6 x 609.6 mm
Die Thickness (minimum - maximum):12 - 30 inches304.8 - 762 mm
Die Stroke:15 inches381 mm
Moving Platen Size (H x V):39 x 43.75 inches990.6 x 1111.25 mm
Shot Positions (Removable Insert):Center to -6 inches Below CenterCenter to -152.4 mm Below Center
Injection Cylinder Stroke:14.5 - 18.5 inches368.3 - 469.9 mm
Ejector Stroke & Force:5 inches & 12.72 tons127 mm & 11.53 tons
Main Motor Power:40 HP30 kw
Machine Size(H x V x W):21.4 x 9.8 x 6.7 feet6.5 x 2.97 x 2.03 meters
Approximate Weight:38,000 pounds17,236 kg

Description

Used, HPM Model II-400-A 400 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Safety Ratchet Device, Manual Operator & Helper Safety Door, Allen Bradley SLC 5/03 Solid State Controls With Panelview 600 HMI, Hydraulic Bumper Platen Ejection System, One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen & One (1) on Stationary Platen, Electric Motorized Die Height Automatic System, Allen Bradley SLC 5/03 Solid State Controls controls, second Hand, DCM-5459

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
