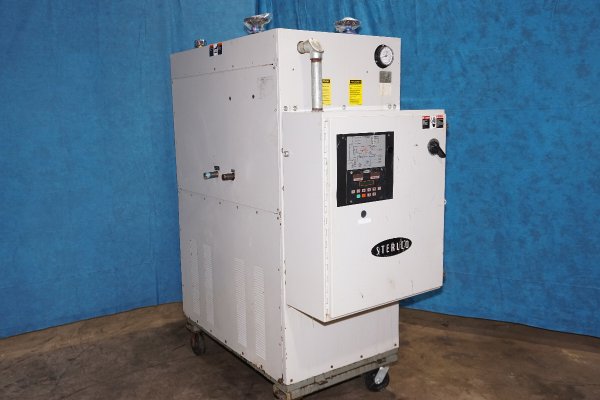

Used Sterlco Model: M2B6017-M1 60 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 32| Status | Sold |
|---|---|
| Manufacturer | Sterlco |
| Model | M2B6017-M1 |
| Size | 60 kW |
| Inventory Number | DCM-5455 |
Sterlco - M2B6017-M1 60 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Sterlco M2B+ Microprocessor Controls
Questions? Call (847) 360-9170 and mention DCM-5455.
Features & Accessories
- Sterlco M2B+ Microprocessor Control
- Alarms for low fluid pressure, pump rotation, over temperature
- Set points for Process, High Alarm, Low Alarm
- Displays for Process Temperature, Return Temperature and Temperature Difference
- Equipped with Thermostatically Controlled Water Cooling Circuit
Item Specifications for DCM-5455
| US | Metric | |
| Main Heater Power (Zone #1): | 60 KW | 60 KW |
| Pump Motor Size (Zone #1): | 5 HP @ 1750 RPM | 3.72 kW @ 1750 RPM |
| Flow Rate (Zone #1): | 90 gallons per minute | 340 liters per minute |
| Connection size/type: | 2 inch Flange | 2 inch Flange |
| Maximum Operating Temperature: | 550 degrees F | 288 degrees C |
| Overall Size (L x W x H): | 69 x 34 x 80 | 1752 mm x 863 mm x 2032 mm |
| Full Load Amps @ 480/3/60: | 79.8 AMPS | 79.8 AMPS |
| Approximate Weight: | 1,900 lbs | 862 kg |
Video
Documents
- Sterlco M2B6017 ManualPDF · 1.9 MB
Description
Used, Sterlco Model M2B6017-M1 60 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Sterlco M2B+ Microprocessor Control, Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference, Equipped with Thermostatically Controlled Water Cooling Circuit, Sterlco M2B+ Microprocessor controls, second Hand, DCM-5455
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
