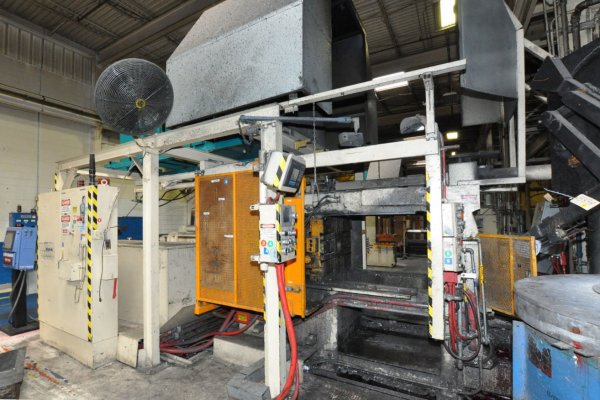

Used Lester Model: HP-700X-SF 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 32| Status | Sold |
|---|---|
| Manufacturer | Lester |
| Model | HP-700X-SF |
| Size | 700 Ton |
| Inventory Number | DCM-5354 |
Lester - HP-700X-SF 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Solid State Controls Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5354.
Features & Accessories
- Olmsted Prefill Shot Control System
- T-Slotted Moving & Stationary Platens
- Six Auxiliary Hydraulic Side Core Circuits
- Lincoln Pressurized Oil Type Central Lubrication System
- Hydraulic Center Platen Ejection System
- Air Safety Ratchet
Item Specifications for DCM-5354
| US | Metric | |
| Maximum Die Locking Pressure: | 700 tons | 635 tons |
| Die Height Adjustment (with die spacer rings): | 28 - 13 inches | 711 - 330 mm |
| Die Stroke (adjustable) | 10 - 18 inches | 254 - 457 mm |
| Clearance between beams (Hor x Vert): | 28.5 inches by 28.5 inches | 723 by 723 mm |
| Moving Platen Size (Hor x Vert): | 40 inches by 47.5 inches | 1270 mm by 1206 mm |
| Ejector Cylinder Stroke (adjustable): | 0 - 3.5 inches | 1016 by 723 mm |
| Ejector Cylinder Force: | 24 tons | 0 - 88 mm |
| Shot Positions (inserted, adjustable): | Center to -6 inches | 21 tons |
| Machine Controls: | Modicon PLC | Modicon PLC |
| Main Motor Size: | 40 HP | 30 KW |
| Approximate Machine Weight: | 49,500 pounds | 22,452 KG |
Video
Description
Used, Lester Model HP-700X-SF 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Olmsted Prefill Shot Control System, T-Slotted Moving & Stationary Platens, Six Auxiliary Hydraulic Side Core Circuits, Lincoln Pressurized Oil Type Central Lubrication System, Hydraulic Center Platen Ejection System, Air Safety Ratchet, Allen Bradley SLC 5/03 Solid State Controls controls, second Hand, DCM-5354
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
