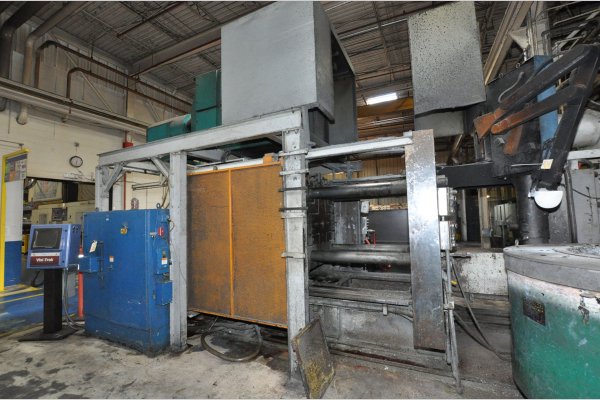

Used Ex-Cell-O B&T Model: DC-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 24| Status | Sold |
|---|---|
| Manufacturer | Ex-Cell-O B&T |
| Model | DC-600-A |
| Size | 600 Ton |
| Inventory Number | DCM-5347 |
Ex-Cell-O B&T - DC-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/053 with PanelView 600 HMI Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5347.
Features & Accessories
- Hydraulic Center Platen Ejection System
- Electric Motorized Die Height Adjustment
- Inserted (adjustable) Shot Position using removable Shot Block
- One Auxiliary Core Circuit on Moving Platen
- Trabon Automatic Central Lubrication System
- Allen Bradley SLC 5/03 Controls with PanelView 600 HMI with Visi-Trak Sure-Trak 2020 Shot Monitoring System
Item Specifications for DCM-5347
| US | Metric | |
| Clamping (Locking) Force: | 600 tons | 544 tons |
| Tie Bar Diameter: | 6 inches | 152 mm |
| Clearance between Tie Bars (H x V): | 29 x 29 inches | 736 x 736 mm |
| Moving Platen Size (H x V x T): | 48 x 48 x 9 inches | 1219 x 1219 x 228 mm |
| Stationary (Fixed) Platen Size (H x V x T): | 53 x 48 x 10 inches | 1346 x 1219 x 254 mm |
| Die Thickness (minimum to maximum): | 12 - 36 inches | 304 - 914 mm |
| Die Stroke: | 17 inches | 431 inches |
| Machine Hydraulics: | Fully Proportional | Fully Proportional |
| Rebuilt & Upgraded and New Shot System by: | Systematic Technologies | Systematic Technologies |
| Overall Size (W x L x H): | 7 x 20 x 9 feet | 2.13 x 6.1 x 2.74 meters |
| Approximate Weight: | 60,000 pounds | 27,215 KG |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Description
Used, Ex-Cell-O B&T Model DC-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Center Platen Ejection System, Electric Motorized Die Height Adjustment, Inserted (adjustable) Shot Position using removable Shot Block, One Auxiliary Core Circuit on Moving Platen, Trabon Automatic Central Lubrication System, Allen Bradley SLC 5/03 Controls with PanelView 600 HMI with Visi-Trak Sure-Trak 2020 Shot Monitoring System, Allen Bradley SLC 5/053 with PanelView 600 HMI controls, second Hand, DCM-5347
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
