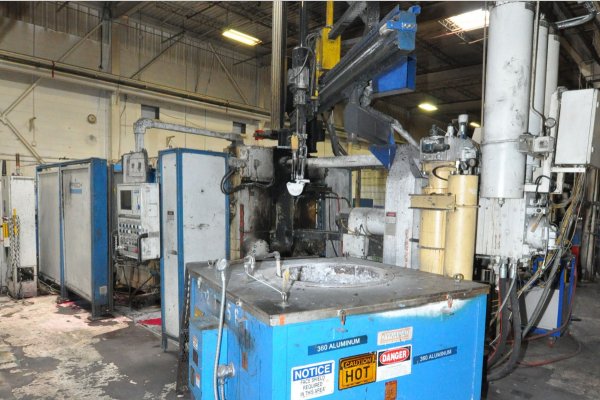

Used Frech Model: M 800-71 RC 882 US Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 43| Status | Sold |
|---|---|
| Manufacturer | Frech |
| Model | M 800-71 RC |
| Size | 882 US Tons |
| Inventory Number | DCM-5320 |
Frech - M 800-71 RC 882 US Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Solid State Relay Controls Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5320.
Features & Accessories
- Purchase of Machine includes Automatic Auto Ladle & Automatic Die Sprayer
- Machine Purchase includes SPESIMA GmbH (part of the Frech Group of companies) DM-3 Automatic Ladle
- Machine Purchase includes SPESIMA GmbH (part of the Frech Group of companies) SM-3 Die Lubrication Sprayer
- Hydraulic Motorized Die Height Adjustment
- Three (3) Auxiliary Hydraulic Side Core Circuits on Moving Platen
- Three (3) Auxiliary Hydraulic Side Core Circuits on Stationary Platen
- Air Safety Ratchet Mechanism
Item Specifications for DCM-5320
| US | Metric | |
| Clamping Force: | 882 ton | 800 Metric Tons |
| Die Thickness (minimum - maximum): | 13.80 - 39.30 inches | 350.52 - 998.22 mm |
| Platen Dimensions (horizontal x vertical): | 51.22 x 51.22 inches | 1300.99 x 1300.99 mm |
| Clearance between tie bars: | 32.51 x 32.51 inches | 825.76 x 825.76 mm |
| Tie Bar Diameter: | 6.50 inches | 165.10 mm |
| Closing Stroke: | 32.51 inches | 825.76 mm |
| Injection Positions (inserted) | 0, -2.76, -5.52, -8.27, -11.03, -13.79 | 0, -70, -140.21, -210.06,-280.17,-350.27 mm |
| Injection Force: | 70 tons | 63.5 tons |
| Recommended Injection Plunger Diameter Range: | 2.75 - 4.72 inches | 69.85 - 119.89 mm |
| Casting Volume Range: | 93.90 - 276.0 Cubic Inches | 1101 - 3,700 Cubic Centimeters |
| Ejector Force: | 40 tons | 36.2 tons |
| Ejector Stroke: | 6.3 inches | 160.02 mm |
Video
Documents
- Spesima-Web-Catalog - September 2021PDF · 1.2 MB
Description
Used, Frech Model M 800-71 RC 882 US Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Machine Purchase includes SPESIMA GmbH (part of the Frech Group of companies) DM-3 Automatic Ladle, Machine Purchase includes SPESIMA GmbH (part of the Frech Group of companies) SM-3 Die Lubrication Sprayer, Hydraulic Motorized Die Height Adjustment, Three (3) Auxiliary Hydraulic Side Core Circuits on Moving Platen, Three (3) Auxiliary Hydraulic Side Core Circuits on Stationary Platen, Air Safety Ratchet Mechanism, Solid State Relay Controls controls, second Hand, DCM-5320
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
