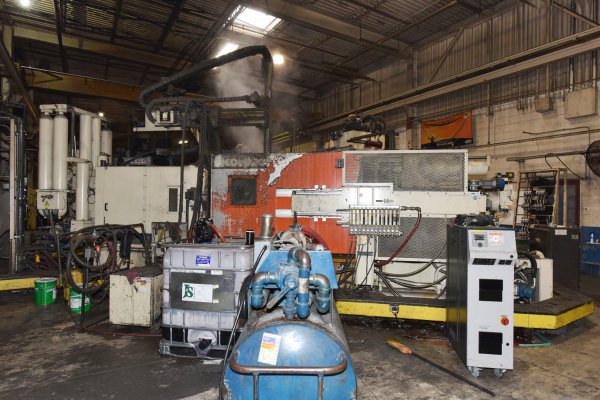

Used Colosio Model: PFO 750 750 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used Colosio Model: PFO 750 750 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 48
StatusSold
ManufacturerColosio
ModelPFO 750
Size750 Metric Ton
Inventory NumberDCM-5319

Colosio - PFO 750 750 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Relay Logic Control Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDFPlay Video

Questions? Call (847) 360-9170 and mention DCM-5319.

Features & Accessories

  • New in 2012 - Complete Cell - Auto Ladle, Auto Sprayer, 6-Axis Robot, Diesse Trim Press, Inspect Under-Power and in Production
  • Electric Motorized Die Height Adjustment System with Electronic Strain Gauge System
  • Fully Automatic Top Operator Side Mounted Tie Bar Puller System
  • Four (4) Auxiliary Hydraulic Core Circuits - Two (2) on Stationary platen, Two (2) on Moving Platen
  • Hydraulic Bumper Plate Ejection System with Automatic Ejector Bar Engagement System for Quick Die Change
  • Automatic Linkage Lubrication System
  • Machine is factory equipped with automatic ladle, automatic die spray, six axis robot for extraction, four post vertical trim press, safety doors and perimeter fencing

Item Specifications for DCM-5319

USMetric
Locking Force:865 tons785 metric tons
Tie Bar Diameter:6.70 inches170 mm
Clearance Between Tie Bars:31.50 x 31.50 inches800 x 800 mm
Die Thickness (minimum - maximum):15.75 - 37.41 inches400 - 950 mm
Die Stroke (minimum - maximum):15.75 - 29.53 inches400 - 750 mm
Moving Platen Size:50.00 x 50.00 inches1270 x 1270 mm
Shot Positions:Inserted, 0 to -9.85Inserted, 0 to -250mm
Shot Stroke:25.59 inches650 mm
Hydraulic Ejection Stroke & Force:6.70 inches @ 41.6 tons170 mm @ 37.9 tons
Power:480/3/60 - 50 HP480/3/60 - 37 kw
Machine Size (Length x Width x Height):27.22 x 8.53 x 10.83 feet8295 x 2600 x 3300 mm
Machine Weight:78,264 pounds35,500 kg

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Video

Documents

Description

Used, Colosio Model PFO 750 750 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment System with Electronic Strain Gauge System, Fully Automatic Top Operator Side Mounted Tie Bar Puller System, Four (4) Auxiliary Hydraulic Core Circuits - Two (2) on Stationary platen, Two (2) on Moving Platen, Hydraulic Bumper Plate Ejection System with Automatic Ejector Bar Engagement System for Quick Die Change, Automatic Linkage Lubrication System, Machine is factory equipped with automatic ladle, automatic die spray, six axis robot for extraction, four post vertical trim press, safety doors and perimeter fencing, Relay Logic Control controls, second Hand, DCM-5319

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
