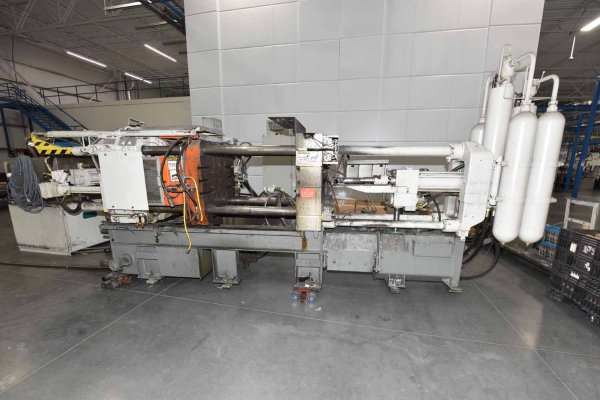

Used Buhler Model: Evolution SC N/34 342 Metric Tons (376 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 31| Status | Sold |
|---|---|
| Manufacturer | Buhler |
| Model | Evolution SC N/34 |
| Size | 342 Metric Tons (376 US Tons) |
| Inventory Number | DCM-5267 |
Buhler - Evolution SC N/34 342 Metric Tons (376 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Buhler DataNet Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5267.
Features & Accessories
- Buhler DataNet Control (Updated to DataNet by Buhler in 2018)
- Top Operator Side Fully Automatic Tie Bar Pulling System with Electronic Tie Bar Strain Gauges
- Twin Cylinder Hydraulic Bumper Plate Ejection
- Two (2) Auxiliary Hydraulic Core Circuits on Moving Platen
- Floor Mounted Power Operator and Helper Side Safety Doors
- Hydraulic Motorized Die Height Adjustment System
Item Specifications for DCM-5267
| US | Metric | |
| Injection Force, Dynamic - Intensified: | 32.52 - 79.62 tons | 290- 710 kn (29.57 - 72.39 metric tons) |
| Injection Positions: | Center to -8.26 inches | Center to -210 mm |
| Plunger Diameter (min - max): | 2.75 - 3.54 inches | 70 - 90 mm |
| Plunger Stroke: | 15.74 inches | 400 mm |
| Projected area (min - Maximum): | 29.29 to 48.5 Square Inches | 189 - 313 cm2 |
| Ejector Force/Stroke: | 11.2 tons - 4.72 inches | 100 kN (10.19 metric tons) - 120 mm stroke |
| Tie Bar Diameter: | 3.93 inches | 100 mm |
| Maximum Locking Force: | 376 Tons | 3360 kN (342.62 metric tons) |
| Platen Size (H x V): | 35.03 x 35.03 inches | 890 x 890 mm |
| Tie Bar Clearance: | 22.44 x 22.44 inches | 570 x 570 mm |
| Die Thickness (minimum - maximum): | 10.82 - 26.77 inches | 275 - 680 mm |
| Maximum Die Opening Stroke: | 20.07 inches | 510 mm |
Video
Description
Used, Buhler Model Evolution SC N/34 342 Metric Tons (376 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Top Operator Side Fully Automatic Tie Bar Pulling System with Electronic Tie Bar Strain Gauges, Twin Cylinder Hydraulic Bumper Plate Ejection, Two (2) Auxiliary Hydraulic Core Circuits on Moving Platen, Floor Mounted Power Operator and Helper Side Safety Doors, Hydraulic Motorized Die Height Adjustment System, Buhler DataNet controls, second Hand, DCM-5267
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
