Used Budzar Industries Model: 10T-360300-GOM-SP 360 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit

StatusSold
ManufacturerBudzar Industries
Model10T-360300-GOM-SP
Size360 KW
Inventory NumberDCM-5256

Budzar Industries - 10T-360300-GOM-SP 360 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit, Panel View Plus Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5256.

Features & Accessories

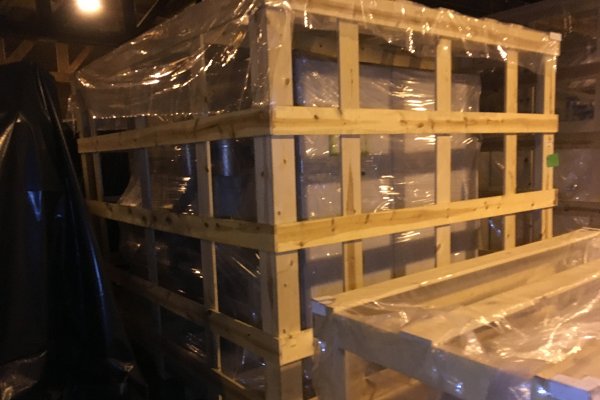

  • Brand New still in skid, Never installed 360 kW Budzar with Water Cooling
  • Rated for Ultra-High-Temperature Applications to 750 degree Fahrenheit/398 centigrade
  • Equipped with Watlow DIN-A-MITE Solid Stare Power Controllers for Control of Heating Elements
  • Partlow 1160+ Digital Temperature Controller/HMI
  • Equipped with 135 gallon process expansion tank
  • Compatible with Dowtherm A thermal fluid
  • Skid-Mounted Package Design for Fast Easy Installation - Full set of drawings, schematics and service manuals available

Item Specifications for DCM-5256

USMetric
Main Heater Power (90 kw per heater):360 kW Total (4 banks of 90 kw each)360 kW Total (4 banks of 90 kw each)
Pump Motor Size:10 HP (3450 RPM)7.457 kW (3450 RPM)
Flow Rate:300 gallons per minute1135.62 liters per minute
Connection size/type:4 inch ANSI R.F.4 inch ANSI R.F.
Maximum Operating Temperature:428 F220 C
Full Load Amps @ 480/3/60:447.99 Amps447.99 Amps
Overall Size (L x W x H):235 x 111 x 103 Inches5969 x 2819 x 2616 mm
Approximate Shipping Weight:9,900 pounds4,491 kg

Documents

Description

Used, Budzar Industries Model 10T-360300-GOM-SP 360 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit For_Sale, Features Include: Rated for Ultra-High-Temperature Applications to 750 degree Fahrenheit/398 centigrade, Equipped with Watlow DIN-A-MITE Solid Stare Power Controllers for Control of Heating Elements, Partlow 1160+ Digital Temperature Controller/HMI, Equipped with 135 gallon process expansion tank, Compatible with Dowtherm A thermal fluid, Skid-Mounted Package Design for Fast Easy Installation - Full set of drawings, schematics and service manuals available, Panel View Plus controls, second Hand, DCM-5256
