SOLD

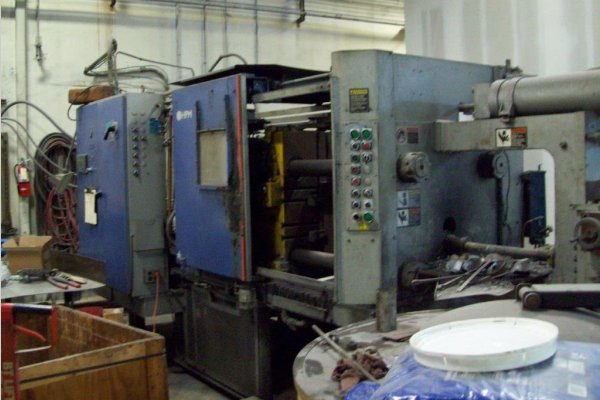

Used HPM Model: U-200-A 200 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerHPM
ModelU-200-A
Size200 U.S. Tons
Inventory NumberDCM-5255

HPM - U-200-A 200 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Solid State Controls with PanelView550 HMI Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-5255.

Features & Accessories

  • New in 1999 - Equipped with Allen Bradley SLC 5/03 Solid State Controls with PanelView550 HMI
  • Safety Ratchet Device, Manual Operator & Helper Safety Door
  • Allen Bradley SLC 5/03 Solid State Controls With Panelview 550 HMI
  • Trabon Oil Type Automatic Lubrication System
  • Center Platen Hydraulic Ejection System plus Fixed Mechanical Bumper Plate Ejection
  • One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen
  • Hydraulic Motorized Die Height Automatic System

Item Specifications for DCM-5255

USMetric
Locking Force:200 tons181.43 tons
Tie Bar Diameter:4 inches101.6 mm
Clearance Between Tie Bars (H x V):22 x 18 inches558.8 x 457.2 mm
Die Thickness (minimum - maximum):10 - 24 inches254.0 - 609.6 mm
Die Stroke:14 inches355.6 mm
Moving Platen Size (H x V x T):34 x 35.75 x 6.75 inches863.6 x 908.05 x 171.45 mm
Shot Positions (Removable Insert):Center to -4 inches Below CenterCenter to -101.6 mm Below Center
Injection Cylinder Stroke:16 inches406.40 mm
Ejector Stroke & Force:3 inches & 6.35 tons76.20 mm & 5.76 tons
Main Motor Power:20 HP14.914 kW
Approximate Shipping Weight:18,500 pounds8,391 kg

Description

Used, HPM Model U-200-A 200 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Safety Ratchet Device, Manual Operator & Helper Safety Door, Allen Bradley SLC 5/03 Solid State Controls With Panelview 550 HMI, Trabon Oil Type Automatic Lubrication System, Center Platen Hydraulic Ejection System plus Fixed Mechanical Bumper Plate Ejection, One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen, Hydraulic Motorized Die Height Automatic System, Allen Bradley SLC 5/03 Solid State Controls with PanelView550 HMI controls, second Hand, DCM-5255

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
