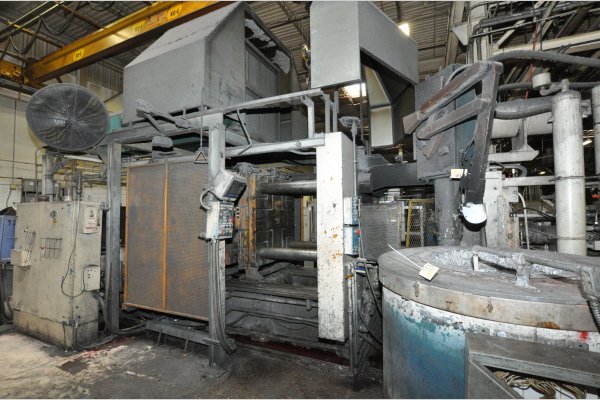

Used Ex-Cell-O B&T Model: DC-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerEx-Cell-O B&T
ModelDC-600-A
Size600 Ton
Inventory NumberDCM-5253

Ex-Cell-O B&T - DC-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/053 with PanelView 600 HMI Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-5253.

Features & Accessories

  • Hydraulic Center Platen Ejection System
  • Electric Motorized Die Height Adjustment
  • Inserted (adjustable) Shot Position using removable Shot Block
  • One Auxiliary Core Circuit on Moving Platen
  • Trabon Automatic Central Lubrication System
  • Allen Bradley SLC 5/03 Controls with PanelView 600 HMI

Item Specifications for DCM-5253

USMetric
Clamping (Locking) Force:600 tons544 tons
Tie Bar Diameter:6 inches152 mm
Clearance between Tie Bars (H x V):29 x 29 inches736 x 736 mm
Moving Platen Size (H x V x T):48 x 48 x 9 inches1219 x 1219 x 228 mm
Stationary (Fixed) Platen Size (H x V x T):53 x 48 x 10 inches1346 x 1219 x 254 mm
Die Thickness (minimum to maximum):12 - 36 inches304 - 914 mm
Die Stroke:17 inches431 inches
Machine Hydraulics:Fully ProportionalFully Proportional
Rebuilt & Upgraded and New Shot System by:Systematic TechnologiesSystematic Technologies
Overall Size (W x L x H):7 x 20 x 9 feet2.13 x 6.1 x 2.74 meters
Approximate Weight:60,000 pounds27,215 KG

Video

Description

Used, Ex-Cell-O B&T Model DC-600-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Center Platen Ejection System, Electric Motorized Die Height Adjustment, Inserted (adjustable) Shot Position using removable Shot Block, One Auxiliary Core Circuit on Moving Platen, Trabon Automatic Central Lubrication System, Allen Bradley SLC 5/03 Controls with PanelView 600 HMI, Allen Bradley SLC 5/053 with PanelView 600 HMI controls, second Hand, DCM-5253
