SOLD

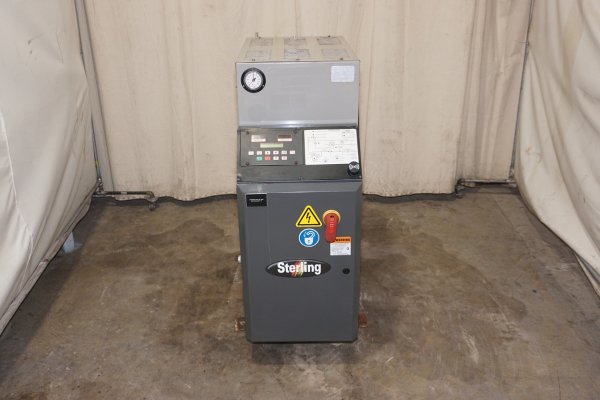

Used Sterlco Model: M2B-2016-MO 24 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit

StatusSold
ManufacturerSterlco
ModelM2B-2016-MO
Size24 kW
Inventory NumberDCM-5245

Sterlco - M2B-2016-MO 24 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit, M2B Microprocessor Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-5245.

Features & Accessories

  • Sterlco M2B Microprocessor Controls
  • Alarms for low fluid pressure, pump rotation, over temperature
  • Set points for Process, High Alarm, Low Alarm
  • Displays for Process Temperature, Return Temperature and Temperature Difference

Item Specifications for DCM-5245

USMetric
Main Heater Power (Zone #1):24 KW24 KW
Pump Motor Size (Zone #1):2 HP @ 1735 RPM1.5 KW
Flow Rate (Zone #1):24 gallons per minute91 liters per minute
Connection size/type:1 inch NPT1 inch NPT
Maximum Operating Temperature:550 degrees F288 degrees C
Overall Size (L x W x H):44 x 18.5 x 481117 mm x 470 mm x 1219 mm
Full Load Amps @ 480/3/60:31.9 AMPS31.9 AMPS
Approximate Weight:370 pounds167 kG

Video

Documents

Description

Used, Sterlco Model M2B-2016-MO 24 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit For_Sale, Features Include: Sterlco M2B Microprocessor Controls, Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference, M2B Microprocessor controls, second Hand, DCM-5245

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
