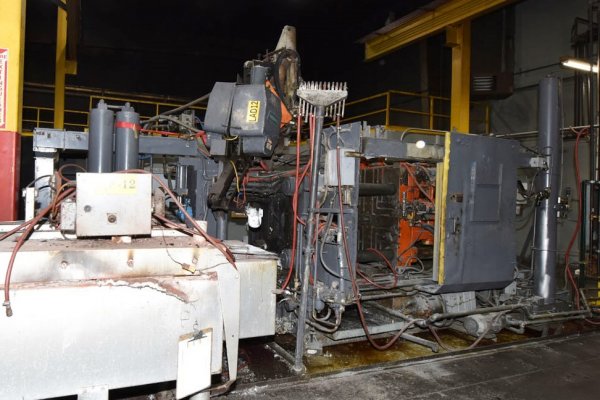

Used HPM Model: II-400-A 400 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerHPM
ModelII-400-A
Size400 U.S. Tons
Inventory NumberDCM-5187

HPM - II-400-A 400 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Solid State Controls Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-5187.

Features & Accessories

  • Machine Purchase Includes Rimrock 305 automatic lade, Rimrock 410 Die Sprayer and Cal-Miser SH 1600 aluminum holding furnace
  • Safety Ratchet Device, Manual Operator & Helper Safety Door
  • Allen Bradley SLC 5/03 Solid State Controls
  • Center Platen Hydraulic Ejection plus Fixed Mechanical Ejector Plate
  • Trabon Oil Type Automatic Lubrication System
  • One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen & One (1) on Stationary Platen
  • Hydraulic Motorized Die Height Automatic System

Item Specifications for DCM-5187

USMetric
Locking Force:400 tons362.8 tons
Tie Bar Diameter:5 inches127 mm
Clearance Between Tie Bars:24 x 24 inches609.6 x 609.6 mm
Die Thickness (minimum - maximum):12 - 30 inches304.8 - 762 mm
Die Stroke:15 inches381 mm
Moving Platen Size (H x V):39 x 43.75 inches990.6 x 1111.25 mm
Shot Positions (Removable Insert):Center to -6 inches Below CenterCenter to -152.4 mm Below Center
Injection Cylinder Stroke:14.5 - 18.5 inches368.3 - 469.9 mm
Ejector Stroke & Force:5 inches & 12.72 tons127 mm & 11.53 tons
Main Motor Power:40 HP30 kw
Machine Size(H x V x W):21.4 x 9.8 x 6.7 feet6.5 x 2.97 x 2.03 meters
Approximate Weight:38,000 pounds17,236 kg

Description

Used, HPM Model II-400-A 400 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Safety Ratchet Device, Manual Operator & Helper Safety Door, Allen Bradley SLC 5/03 Solid State Controls, Center Platen Hydraulic Ejection plus Fixed Mechanical Ejector Plate, Trabon Oil Type Automatic Lubrication System, One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen & One (1) on Stationary Platen, Hydraulic Motorized Die Height Automatic System, Allen Bradley SLC 5/03 Solid State Controls controls, second Hand, DCM-5187
