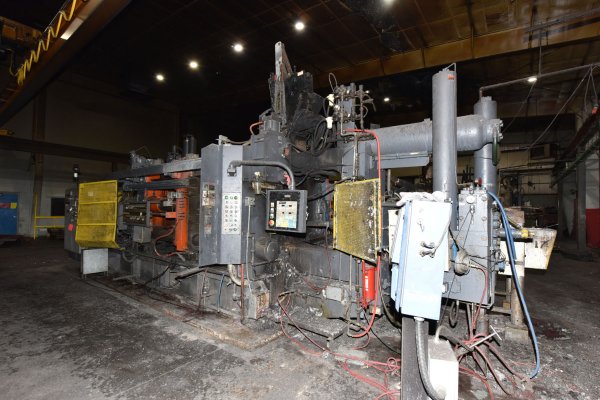

Used HPM Model: II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 20| Status | Sold |
|---|---|
| Manufacturer | HPM |
| Model | II-900-A |
| Size | 900 Ton |
| Inventory Number | DCM-5185 |
HPM - II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Series Solid State Programmable Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5185.
Features & Accessories
- Machine Purchase Includes Visi-Trak 202/20 Shot Monitoring System, Rimrock 305 automatic ladle, Rimrock 410 Die Sprayer and Cal-Miser SH 2700 aluminum holding furnace
- Top Operator Side Automatic Tie Bar Puller System
- Allen Bradley SLC 5/03 Series Solid State Programmable Controls
- Hydraulic Center Platen Ejection System plus Mechanical Bumper Plate
- Trabon Automatic Oil Type Lubrication System - Dual-Lube System with Separate Oil & Grease Systems
- Two (2) Auxiliary Hydraulic Side Core Circuits on fixed platen, one Core on Moving Platen
- Hydraulic Powered Motorized Die Height Adjustment
Item Specifications for DCM-5185
| US | Metric | |
| Locking Force: | 900 tons | 816 tons |
| Tie Bar Diameter: | 8 inches | 203 mm |
| Clearance Between Tie Bars: | 38 x 38 inches | 965 x 965 mm |
| Die Thickness (minimum - maximum): | 16 - 40 inches | 406 - 1016 mm |
| Die Stroke (minimum - maximum): | 23 - 29 inches | 884 - 736 mm |
| Moving Platen Size: | 61 x 61 inches | 1549 x 1549 mm |
| Shot Positions (removable Insert): | Center, -3, -6, -9 inches | Center to -76.2, -152.4, -228.8 mm |
| Injection Cylinder Stroke: | 23 - 29 inches | 584 - 736 mm |
| Ejector Stroke & Force: | 5 inches & 23.6 tons | 127 mm & 21.4 tons |
| Main Motor Power: | 60 HP | 44.76 kw |
| Machine Size: | 31.1 x 8.6 x 11.5 feet | 9.48 x 2.62 x 3.51 meters |
| Machine Weight: | 103,000 pounds | 46,818 kg |
Description
Used, HPM Model II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Top Operator Side Automatic Tie Bar Puller System, Allen Bradley SLC 5/03 Series Solid State Programmable Controls, Hydraulic Center Platen Ejection System plus Mechanical Bumper Plate, Trabon Automatic Oil Type Lubrication System - Dual-Lube System with Separate Oil & Grease Systems, Two (2) Auxiliary Hydraulic Side Core Circuits on fixed platen, one Core on Moving Platen, Hydraulic Powered Motorized Die Height Adjustment, Allen Bradley SLC 5/03 Series Solid State Programmable controls, second Hand, DCM-5185
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
