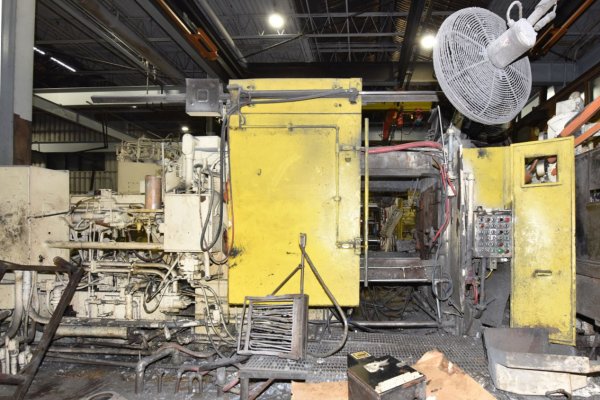

Used Lester Model: HP-900X-SF 900 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 21| Status | Sold |
|---|---|
| Manufacturer | Lester |
| Model | HP-900X-SF |
| Size | 900 U.S. Tons |
| Inventory Number | DCM-5179 |
Lester - HP-900X-SF 900 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Solid State Controls Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-5179.
Features & Accessories
- Olmsted Prefill Shot Control System Controlled by Visi-Trak Sure-Trak 2 Closed/Open Loop Servo Shot System
- T-Slotted Moving & Stationary Platens
- Auxiliary Hydraulic Side Core Circuits
- Pressurized Oil Type Central Lubrication System
- Hydraulic Center Platen Ejection System
- Air Safety Ratchet
Item Specifications for DCM-5179
| US | Metric | |
| Maximum Die Locking Pressure: | 900 tons | 816 tons |
| Die Height Adjustment (with die spacer rings): | 36 - 18 inches | 914 - 457 mm |
| Die Stroke (adjustable) | 12 - 21 inches | 304 - 533 mm |
| Clearance between beams (Hor x Vert): | 35 inches by 36 inches | 889 by 914 mm |
| Moving Platen Size (Hor x Vert): | 50 inches by 50 inches | 1270 mm by 1270 mm |
| Ejector Cylinder Stroke (adjustable): | 0 - 8 inches | 0 - 203 mm |
| Ejector Cylinder Force: | 20 tons | 18 tons |
| Shot Positions (inserted, adjustable): | Center to -10 inches | center to 254 mm |
| Machine Controls: | Allen Bradley SLC 5/03 | Allen Bradley SLC 5/03 |
| Main Motor Size: | 40 HP | 30 kw |
| Approximate Machine Weight: | 75,000 pounds | 34,100 KG |
Description
Used, Lester Model HP-900X-SF 900 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Olmsted Prefill Shot Control System Controlled by Visi-Trak Sure-Trak 2 Closed/Open Loop Servo Shot System, T-Slotted Moving & Stationary Platens, Auxiliary Hydraulic Side Core Circuits, Pressurized Oil Type Central Lubrication System, Hydraulic Center Platen Ejection System, Air Safety Ratchet, Allen Bradley SLC 5/03 Solid State Controls controls, second Hand, DCM-5179
