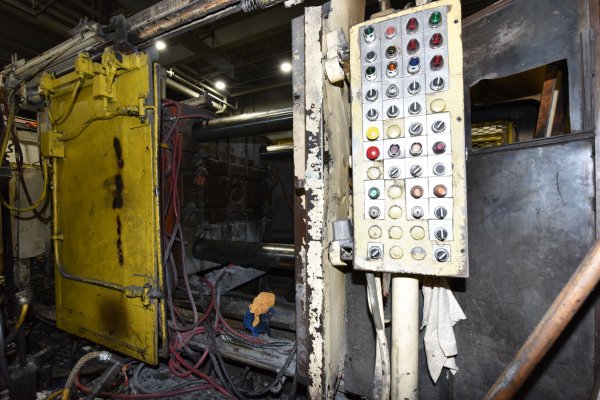

Used Prince Model: 633 CCA 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerPrince
Model633 CCA
Size700 Ton
Inventory NumberDCM-5094

Prince - 633 CCA 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/20 with Visi-Trak Sure-Shot 2 Servo Shot Control System Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-5094.

Features & Accessories

  • Upgraded to Visi-Trak Sure-Shot 2 Servo Shot Control System
  • C-Frame Shot End with Hydraulic Shot Position Adjustment with Visi-Trak Sure-Shot 2 Servo Shot Control System
  • Allen Bradley PLC 5/20 Controls
  • Twin Cylinder Hydraulic Bumper Plate Ejection System, Two (2) auxiliary hydraulic side core circuits one (1) on moving platen one (1) on stationary platen
  • Fully Automatic Top Operator Side Tie Bar Pulling System including power rear split-ring
  • Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Adjustment System
  • Power Operator Side and Manual Helper Side Doors, Trabon Oil Type Lubrication System

Item Specifications for DCM-5094

USMetric
Rated Tonnage:700 tons636 tons
Tie Bar Diameter:6.75 inches171 mm
Clearance between Tie Bars:32.75 x 32.75 inches831 x 831 mm
Front Platen Size (T x W x H):11.75 x 54.50 x 61.50 inches298 x 1384 x 1562 mm
Moving Platen Size (T x W x H):10.75 x 54.50 x 54.50 inches273 x 1384 x 1384 mm
Die Thickness (minimum to maximum):18 - 38 inches457 - 965 mm
Die Stroke:20 inches508 mm
Shot Positions (inserted, adjustable):Center to 10 inches below centerCenter to 250 mm below
Shot Cylinder Stroke:19 - 24 inches482 - 609 mm
Motor Size:60 HP44.76 Kw
Machine Size (L x W x H):26 x 8 x 10 feet7.92 x 2.44 x 3.05 meters
Machine Weight:70,000 pounds31,820 kg

Description

Used, Prince Model 633 CCA 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: C-Frame Shot End with Hydraulic Shot Position Adjustment with Visi-Trak Sure-Shot 2 Servo Shot Control System, Allen Bradley PLC 5/20 Controls, Twin Cylinder Hydraulic Bumper Plate Ejection System, Two (2) auxiliary hydraulic side core circuits one (1) on moving platen one (1) on stationary platen, Fully Automatic Top Operator Side Tie Bar Pulling System including power rear split-ring, Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Adjustment System, Power Operator Side and Manual Helper Side Doors, Trabon Oil Type Lubrication System, Allen Bradley PLC 5/20 with Visi-Trak Sure-Shot 2 Servo Shot Control System controls, second Hand, DCM-5094

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
