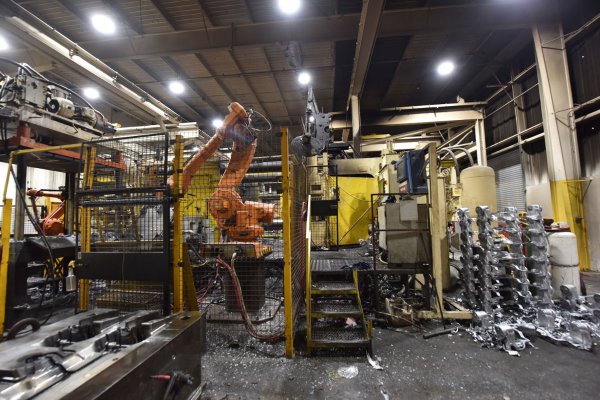

Used Ex-Cell-O B&T Model: DC-1600 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used Ex-Cell-O B&T Model: DC-1600 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 34
StatusSold
ManufacturerEx-Cell-O B&T
ModelDC-1600
Size1600 Ton
Inventory NumberDCM-5081

Ex-Cell-O B&T - DC-1600 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Controls with Visi-Trak Sure-Trak 2 Shot Control System Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDFPlay Video

Questions? Call (847) 360-9170 and mention DCM-5081.

Features & Accessories

  • Updated in 2015 with Die Cast Press Shot End with Visi-Trak Sure-Trak 2 Shot Control System with full Servo Shot Control
  • Allen Bradley SLC 5/03 Solid State Controls
  • Twin Cylinder Hydraulic Bumper Plate Ejection System with Pull-Back
  • Three (3) Core Circuits on Moving Platen and One (1) Core Circuit on Front Platen
  • Inserted Shot Position (Shot Block) with Center to -15 below center shot positions
  • Air Safety Ratchet Device, Automatic Lubrication System, Motorized Die Height Adjustment System
  • Power Operator Side and Power Helper Side Doors

Item Specifications for DCM-5081

USMetric
Factory Rated Tonnage:16001454
Tie Bar Diameter:11 inches279.4 mm
Clearance Between Tie bars:51 inches1295.4 mm
Front Platen Size (T x W x H):21 x 84 x 98 inches508 x 2108.2 x 2438.4 mm
Moving Platen Size (T x W x H):20 x 84 x 84 inches482.25 x 2108.2 x 2108.2 mm
Die Thickness (min. - max.)30 - 62 inches762 - 1574.8 mm
Die Stroke (adjustable):27 - 34 inches685 - 863 mm
Ejection Stroke:10 inches254 mm
Motor Size125 hp93.25 kw
Machine Size (L x W x H)40 x 11 x 12 feet12.1 x 3.3 x 3.6 m
Machine Weight260,000 pounds118 MT

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Video

Description

Used, Ex-Cell-O B&T Model DC-1600 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Allen Bradley SLC 5/03 Solid State Controls, Twin Cylinder Hydraulic Bumper Plate Ejection System with Pull-Back, Three (3) Core Circuits on Moving Platen and One (1) Core Circuit on Front Platen, Inserted Shot Position (Shot Block) with Center to -15 below center shot positions, Air Safety Ratchet Device, Automatic Lubrication System, Motorized Die Height Adjustment System, Power Operator Side and Power Helper Side Doors, Allen Bradley SLC 5/03 Controls with Visi-Trak Sure-Trak 2 Shot Control System controls, second Hand, DCM-5081

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
