SOLD

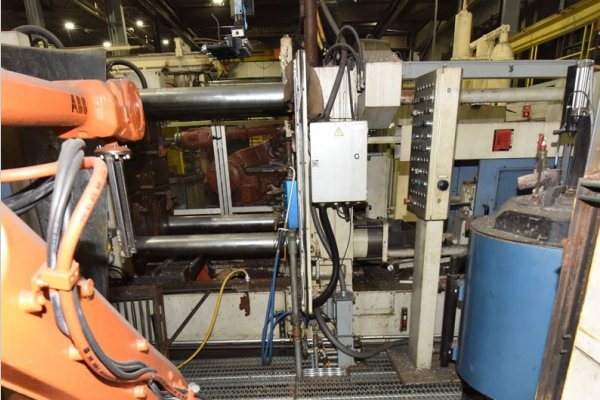

Used Idra Model: OL-560S 596 Metric Ton (658 U.S. Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine

StatusSold
ManufacturerIdra
ModelOL-560S
Size596 Metric Ton (658 U.S. Tons)
Inventory NumberDCM-5077

Idra - OL-560S 596 Metric Ton (658 U.S. Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Allen Bradley ControlLogix Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-5077.

Features & Accessories

  • Upgraded to Visi-Trak Sure-Shot 2 Closed Loop Servo Shot System
  • Fully Automatic Top Operator Side Tie Bar Pulling System, Electronic Strain Gauges
  • Hydraulic Motorized Die Height Adjustment
  • Power Operator Side Safety Door, Manual Helper Side Safety Door
  • Two (2) Auxiliary Hydraulic Side Core Circuits on Moving Platen, One (1) on Stationary Platen
  • Fully Proportional Hydraulics
  • Air Safety Ratchet Device

Item Specifications for DCM-5077

USMetric
Locking Force:658 Tons5850 KN (596 metric tons)
Tie Bar Diameter:5.51 inches140 mm
Clearance Between Tie Bars:29.92 inches759 mm
Die Thickness (minimum - maximum):11.81 - 31.50 inches300 - 800 mm
Die Stroke (maximum):27.56 inches700 mm
Moving Platen Size:46.38 x 46.38 inches1178 x 1178 mm
Shot Positions:Center to -10 inches below center (inserted)center to -254 mm below center (inserted)
Injection Stroke:23.62 inches600 mm
Maximum Injection Force:59.69 U.S. Tons531 Kn (54.14 metric tons)
Ejection Force:27 tons246 KN
Machine Size ( W x L x H ) :11.08 x 25.09 x 10.31 Feet3380 x 7650 x 3143 mm
Machine Weight:25.904 Tons23.49 Metric Tons

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Description

Used, Idra Model OL-560S 596 Metric Ton (658 U.S. Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Fully Automatic Top Operator Side Tie Bar Pulling System, Electronic Strain Gauges, Hydraulic Motorized Die Height Adjustment, Power Operator Side Safety Door, Manual Helper Side Safety Door, Two (2) Auxiliary Hydraulic Side Core Circuits on Moving Platen, One (1) on Stationary Platen, Fully Proportional Hydraulics, Air Safety Ratchet Device, Allen Bradley ControlLogix controls, second Hand, DCM-5077

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
