SOLD

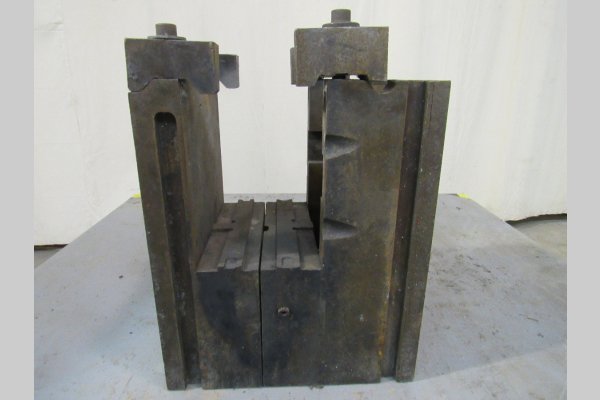

Used DME Model: DCS-1012-A 1012 Inch Standard Duty, Single Unit, Cold Chamber Aluminum master unit die holder

StatusSold
ManufacturerDME
ModelDCS-1012-A
Size1012 Inch
Inventory NumberDCM-5035

DME - DCS-1012-A 1012 Inch Standard Duty, Single Unit, Cold Chamber Aluminum master unit die holder, Controls

View Available DME Die Cast Tooling

Questions? Call (847) 360-9170 and mention DCM-5035.

Features & Accessories

  • Same Day Shipping Available from our Die Cast Machinery, LLC Waukegan, Illinois Warehouse
  • Quick Die Change System For Die Casting - Modular Unit Design - MUD
  • DME Standard Duty Design
  • Single Unit Holder - Holds one set of inserts
  • Cold Chamber Configuration for Cold Chamber Aluminum or Cold Chamber Magnesium Die Casting
  • Ships from stock from our Waukegan warehouse

Item Specifications for DCM-5035

USMetric
Overall Width:11.875 inches301.625 mm
Overall Length:17.875 inches454.025 mm
Overall Height (thickness):15.125 inches384.175 mm
Cover Half Thickness:5.75 inches146.050 mm
Ejector Half Thickness:9.375 inches238.125 mm
Insert Size - Cover Side:9.875 x 11.875 x 3.375 inches250.825 x 301.625 x 85.725 mm
Insert Size - Ejector Side:9.875 x 11.875 x 3.375 inches250.825 x 301.625 x 85.725 mm
Shot Bore & Counter-bore:3.5 & 4 inches88.9 & 101.6 mm
Shot Counter-bore depth:1.0625 inches26.98 mm
Approximate Weight:535 pounds243.2 kg

Video

Documents

Description

Used, DME Model DCS-1012-A 1012 Inch Standard Duty, Single Unit, Cold Chamber Aluminum master unit die holder For_Sale, Features Include: Quick Die Change System For Die Casting - Modular Unit Design - MUD, DME Standard Duty Design, Single Unit Holder - Holds one set of inserts, Cold Chamber Configuration for Cold Chamber Aluminum or Cold Chamber Magnesium Die Casting, Ships from stock from our Waukegan warehouse, controls, second Hand, DCM-5035

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
