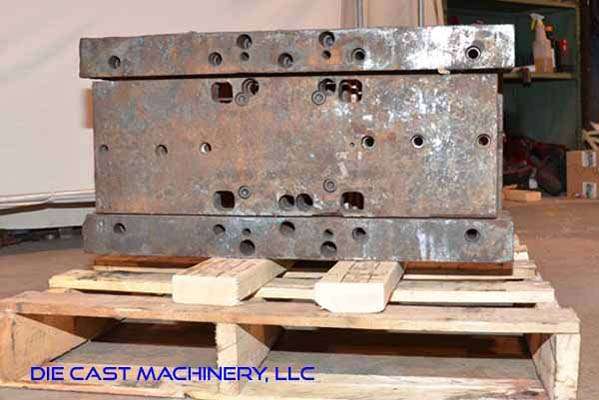

Used DME Model: DC-1012-Z 1012 Inch Standard Duty, Double Unit, Hot Chamber Zinc master unit die holder

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerDME
ModelDC-1012-Z
Size1012 Inch
Inventory NumberDCM-3489
Price$750

DME - DC-1012-Z 1012 Inch Standard Duty, Double Unit, Hot Chamber Zinc master unit die holder, Controls

View Available DME Die Cast Tooling

Questions? Call (847) 360-9170 and mention DCM-3489.

Features & Accessories

  • Quick Die Change
  • Standard Duty Design
  • Double Holder - holds two inserts
  • Hot Chamber Configuration
  • Ships from stock from our Waukegan warehouse

Item Specifications for DCM-3489

USMetric
Overall Width:11.875 inches301.625 mm
Overall Length:25.0625 inches636.5875 mm
Overall Height (thickness):15.125 inches384.175 mm
Cover Half Thickness:5.75 inches146.050 mm
Ejector Half Thickness:9.375 inches238.125 mm
Insert Size:9.875 x 11.875 x 3.375 inches250.825 x 301.625 x 85.725 mm
Approximate Weight:645 pounds293.2 kg

Video

Description

Used, DME Model DC-1012-Z 1012 Inch Standard Duty, Double Unit, Hot Chamber Zinc master unit die holder For_Sale, Features Include: Quick Die Change, Standard Duty Design, Double Holder - holds two inserts, Hot Chamber Configuration, Ships from stock from our Waukegan warehouse, controls, second Hand, DCM-3489
