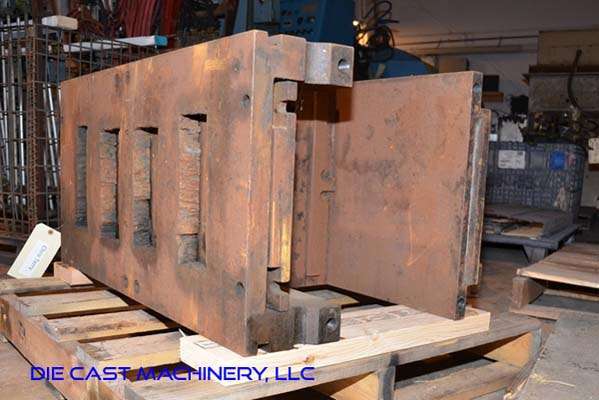

Used DME Model: DC-1518-Z 1518 Inch Standard Duty, Double Unit, Hot Chamber Zinc master unit die holder

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerDME
ModelDC-1518-Z
Size1518 Inch
Inventory NumberDCM-3485

DME - DC-1518-Z 1518 Inch Standard Duty, Double Unit, Hot Chamber Zinc master unit die holder, Controls

View Available DME Die Cast Tooling

Questions? Call (847) 360-9170 and mention DCM-3485.

Features & Accessories

  • Quick Die Change
  • Standard Duty Design
  • Holds up to two (2) Cavity Inserts
  • Hot Chamber Configuration
  • Ships from stock from our Waukegan warehouse

Item Specifications for DCM-3485

USMetric
Overall Width:17.875 inches454.025 mm
Overall Length:35.750 inches908.050 mm
Overall Height (thickness):18.125 inches460.375 mm
Cover Half Thickness:6.750 inches171.450 mm
Ejector Half Thickness:11.375 inches288.925 mm
Insert Size:14.875 x 17.875 x 4.375 inches377.825 x 454.025 x 111.125 mm
Approximate Weight:1554 pounds706.4 kg

Description

Used, DME Model DC-1518-Z 1518 Inch Standard Duty, Double Unit, Hot Chamber Zinc master unit die holder For_Sale, Features Include: Quick Die Change, Standard Duty Design, Holds up to two (2) Cavity Inserts, Hot Chamber Configuration, Ships from stock from our Waukegan warehouse, controls, second Hand, DCM-3485

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
