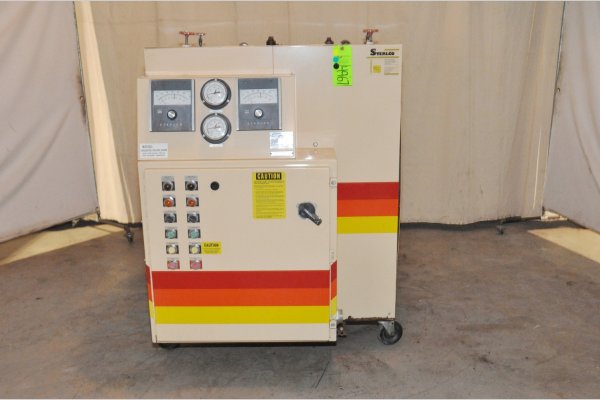

Used Sterlco Model: F6026-BX 72 kW (36 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit
1 / 23| Status | Sold |
|---|---|
| Manufacturer | Sterlco |
| Model | F6026-BX |
| Size | 72 kW (36 kW per zone) |
| Inventory Number | DCM-4967 |
Sterlco - F6026-BX 72 kW (36 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit, Sterlco Series 400 Controls
Questions? Call (847) 360-9170 and mention DCM-4967.
Features & Accessories
- Sterlco Series 400 Controllers
- Alarms for low fluid pressure, pump rotation, over temperature
- Set points for Process, High Alarm, Low Alarm
- Displays for Process Temperature, Return Temperature and Temperature Difference
Item Specifications for DCM-4967
| US | Metric | |
| Main Heater Power (Zone 1, 2,): | 36 kw | 36 kw |
| Pump Motor Size (Zone 1, 2,): | 2 HP | 1.49 KW |
| Flow Rate (Zone 1, 2,): | 24 gallons per minute | 90.8 liters per minute |
| Connection size/type (Zone 1, 2,): | 1 inch | 25.4 mm |
| Maximum Operating Temperature: | 550 F | 287 C |
| Full Load Amps @ 460/3/60: | 94 amp | 94 amp |
| Overall Size (L x W x H): | 43 x 42 x 57 inches | 1092 x 1067 x 1448 mm |
| Weight: | 1066 pounds | 483 kg |
Video
Description
Used, Sterlco Model F6026-BX 72 kW (36 kW per zone) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit For_Sale, Features Include: Sterlco Series 400 Controllers, Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference, Sterlco Series 400 controls, second Hand, DCM-4967
