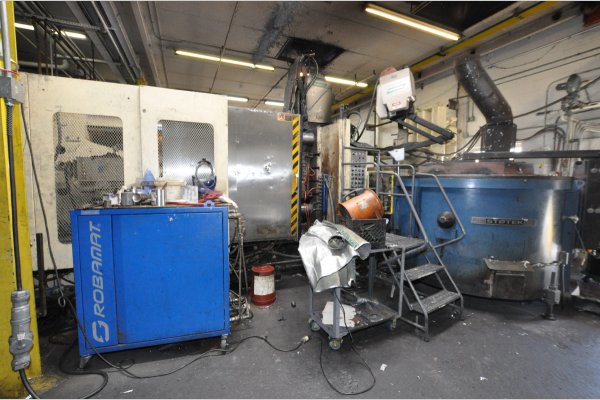

Used LK Machinery Model: DCC 800 817 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 11| Status | Sold |
|---|---|
| Manufacturer | LK Machinery |
| Model | DCC 800 |
| Size | 817 Metric Ton |
| Inventory Number | DCM-4962 |
LK Machinery - DCC 800 817 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley MicroLogix Solid Stale Controls with Allen Bradley LCD Color Touch-Screen HMI Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4962.
Features & Accessories
- Die Cast Machine #28
- Allen Bradley MicroLogix Solid State PLC Controls with Allen Bradley Color LCD HMI (Human Machine Interface)
- Top Helper Side Automatic Tie Bar Puller System
- Hydraulic Bumper Plate Ejection System
- Hydraulic Motorized Die Height Adjustment
- Air Safety Ratchet
- Two (2) auxiliary hydraulic Side Core/Side-Punch Circuit on Moving Platen
Item Specifications for DCM-4962
| US | Metric | |
| Locking Force: | 899 U.S. Tons | 817 Metric Tons (8000 kN) |
| Platen Size: | 55.11 x 55 inches | 1400 x 1395 mm |
| Clearance Between Tie Bars (V x H): | 35.82 x 35.82 inches | 910 x 910 mm |
| Tie Bar Diameter: | 7.08 inches | 180 mm |
| Die Stroke: | 29.92 inches | 760 mm |
| Die Height (min - max): | 15.7 - 37.40 inches | 400 - 950 mm |
| Shot Position (inserted, adjustable): | Center to -9.8 inches | Center to -250 mm |
| Ejection Stroke | 7.08 inches | 180 mm |
| Ejection Force: | 35 ton | 315 kN |
| Injection Stroke: | 29.92 inches | 760 mm |
| Machine Weight: | 94,600 tons | 43,000 kg |
| Machine Size: | 25.6 x 7.0 x 10.1 Feet | 9.0 x 2.1 x 3.1 meters |
Description
Used, LK Machinery Model DCC 800 817 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Allen Bradley MicroLogix Solid State PLC Controls with Allen Bradley Color LCD HMI (Human Machine Interface), Top Helper Side Automatic Tie Bar Puller System, Hydraulic Bumper Plate Ejection System, Hydraulic Motorized Die Height Adjustment, Air Safety Ratchet, Two (2) auxiliary hydraulic Side Core/Side-Punch Circuit on Moving Platen, Allen Bradley MicroLogix Solid Stale Controls with Allen Bradley LCD Color Touch-Screen HMI controls, second Hand, DCM-4962
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
