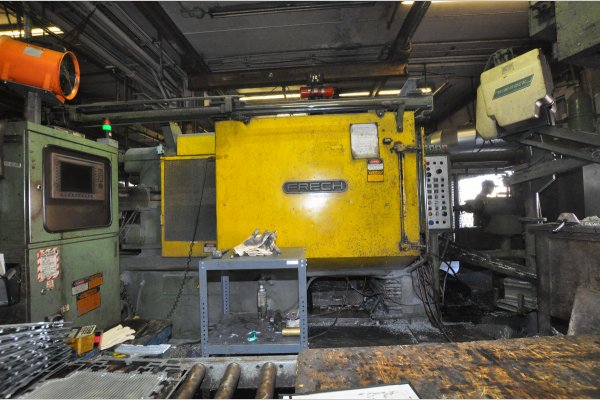

Used Frech Model: DAK 500 H 592 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 13| Status | Sold |
|---|---|
| Manufacturer | Frech |
| Model | DAK 500 H |
| Size | 592 Metric Ton |
| Inventory Number | DCM-4961 |
Frech - DAK 500 H 592 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC Solid State Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4961.
Features & Accessories
- Die Cast Machine #4
- Electric Motorized Die Height Adjustment
- Hydraulic Bumper Plate Ejection
- Inserted Shot Positions (allows for multiple differ shot positions by moving the shot block
- Retrofitted to Allen Bradley PLC Controls
- Two (2) Auxiliary Hydraulic Side Core Circuits on Moving Platen
Item Specifications for DCM-4961
| US | Metric | |
| Clamping Force: | 652 ton | 592 Metric Tons (5,800 kN) |
| Die Thickness (minimum - maximum): | 13.77 - 31.49 inches | 350 - 800 |
| Platen Dimensions (horizontal x vertical): | 44 x 46 inches | 1120 x 1170 mm |
| Clearance between tie bars: | 27.56 x 27.56 inches | 700 x 700 mm |
| Tie Bar Diameter: | 5.51 inches | 139.95 mm |
| Closing Stroke: | 26.77 inches | 680 mm |
| Injection Positions (inserted) | 0, -2.75, -5.50, -8-26 | 0, -70, -140, -210 |
| Injection Force: | 100.4 tons | 898 kN |
| Recommended Injection Plunger Diameter Range: | 2.36 - 4.3 inches | 60 - 110 mm |
| Casting Volume Range: | 67 - 225 Cubic Inches | 1101 - 3,700 Cubic Centimeters |
| Ejector Force: | 31.35 tons | 285 kN |
| Ejector Stroke: | 6.3 inches | 160 mm |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Description
Used, Frech Model DAK 500 H 592 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height Adjustment, Hydraulic Bumper Plate Ejection, Inserted Shot Positions (allows for multiple differ shot positions by moving the shot block, Retrofitted to Allen Bradley PLC Controls, Two (2) Auxiliary Hydraulic Side Core Circuits on Moving Platen, Allen Bradley PLC Solid State controls, second Hand, DCM-4961
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
