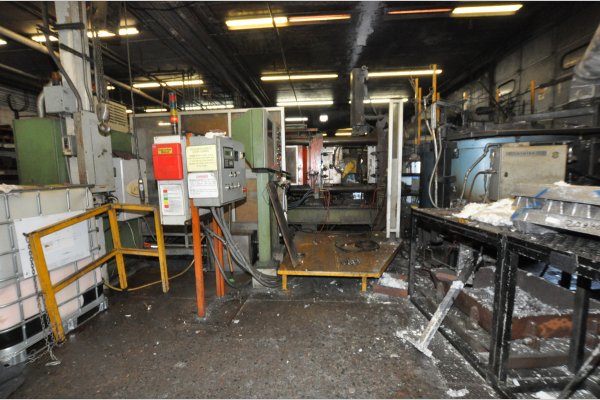

Used Buhler Model: SC D/66 649 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 7| Status | Sold |
|---|---|
| Manufacturer | Buhler |
| Model | SC D/66 |
| Size | 649 Metric Ton |
| Inventory Number | DCM-4958 |
Buhler - SC D/66 649 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Buhler Datacess-SC Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4958.
Features & Accessories
- Top Operator Side Automatic Tie Bar Puller System
- Hydraulic Bumper Plate Ejection System
- Air Safety Ratchet Devivce
- Hydraulic Motorized Die Height Adjustment System
- Inserted Shot Position allows for multiple Shot Position via Adjustable Shot Block
- Two (2) auxiliary hydraulic Side Core/Side-Punch Circuit on Moving Platen, One (1) on Fixed Platen
Item Specifications for DCM-4958
| US | Metric | |
| Locking Force; | 743 tons | 649 Metric Tons (6615 kn) |
| Tie Bar Diameter: | 5.9 inches | 150 mm |
| Clearance Between Tie Bars: | 30.7 x 30.7 inches | 780 x 780 mm |
| Die Thickness (minimum - maximum): | 14.17 - 35.43 inches | 360 - 900 mm |
| Die Stroke (minimum - maximum): | 31.49 inches | 800 mm |
| Moving Platen Size: | 48.0 x 54.11 inches | 1220 x 1374.5 mm |
| Shot Positions (Inserted, adjustable): | Center to -11.81 | Center to -300 mm |
| Shot Stroke: | 23.62 inches | 600 mm |
| Power: | 480/3/60 | 480/3/60 |
| Machine Size: | 25.8 x 9.3 x 7.5 feet | 7.87 x 2.84 x 2.295 meters |
| Machine Weight: | 57,200 pounds | 26,000 kg |
Description
Used, Buhler Model SC D/66 649 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Top Operator Side Automatic Tie Bar Puller System, Hydraulic Bumper Plate Ejection System, Air Safety Ratchet Devivce, Hydraulic Motorized Die Height Adjustment System, Inserted Shot Position allows for multiple Shot Position via Adjustable Shot Block, Two (2) auxiliary hydraulic Side Core/Side-Punch Circuit on Moving Platen, One (1) on Fixed Platen, Buhler Datacess-SC controls, second Hand, DCM-4958
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
