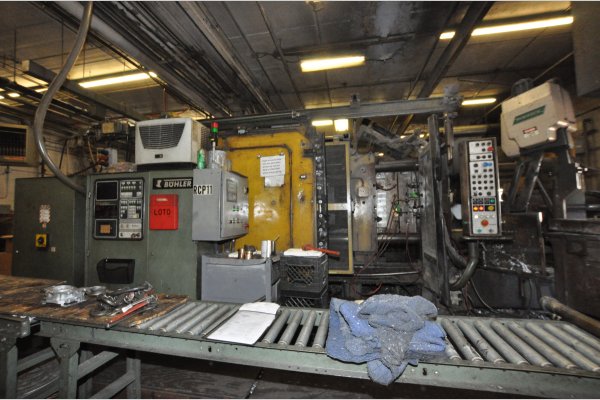

Used Buhler Model: H-630 B V5 740 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 17| Status | Sold |
|---|---|
| Manufacturer | Buhler |
| Model | H-630 B V5 |
| Size | 740 Metric Ton |
| Inventory Number | DCM-4957 |
Buhler - H-630 B V5 740 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Buhler Datacess Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4957.
Features & Accessories
- Die Cast Machine #11
- Buhler Datacess control
- Hydraulic Bumper Plate Ejection System
- Hydraulic Motorized Die Height Adjustment
- Two (2) Auxiliary Hydraulic Side Core Circuits on Moving platen, One (1) Core on Fixed Platen
Item Specifications for DCM-4957
| US | Metric | |
| Locking Force: | 814 tons | 740 Metric Tons (7250 kn) |
| Tie Bar Diameter: | 5.9 inches | 150 mm |
| Clearance Between Tie Bars: | 30.7 x 30.7 inches | 780 x 780 mm |
| Die Thickness (minimum - maximum): | 11.8 - 37.40 inches | 300 - 950 mm |
| Die Stroke (maximum): | 30.7 inches | 780 mm |
| Moving Platen Size: | 47.6 x 47.6 inches | 1210 x 1210 mm |
| Shot Positions (Inserted, adjustable): | Center to -13.77 | Center to -350 mm |
| Shot Stroke | 22.8 inches | 580 mm |
| Power | 480/3/60 | 480/3/60 |
| Machine Size | 29.5 x 9.5 feet | 9 x 2.9 m |
| Machine Weight | 62,700 pounds | 28,500 kg |
Description
Used, Buhler Model H-630 B V5 740 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Buhler Datacess control, Hydraulic Bumper Plate Ejection System, Hydraulic Motorized Die Height Adjustment, Two (2) Auxiliary Hydraulic Side Core Circuits on Moving platen, One (1) Core on Fixed Platen, Buhler Datacess controls, second Hand, DCM-4957
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
