Used Prince Model: 528 CCA 550 U.S. Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 17| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 528 CCA |
| Size | 550 U.S. Ton |
| Inventory Number | DCM-4956 |
Prince - 528 CCA 550 U.S. Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC Solid State Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4956.
Features & Accessories

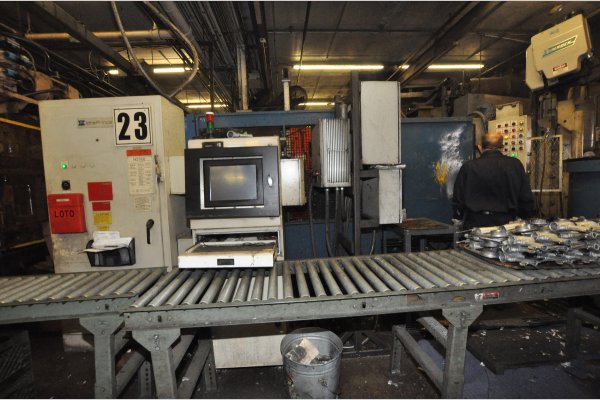

- Die Cell Machine Cell #23
- Prince Binary II Shot Control System
- Twin Cylinder Hydraulic Bumper Plate Ejection System
- Automatic Tie Bar Puller on Top Helper Side Tie Bar
- Air Safety Ratchet, Trabon Oil Type Automatic Lubrication System
- Two Core Circuits on Moving Platen
- Hydraulic Motorized Die Height Adjustment with Individual Tie Bar Adjustment System
Item Specifications for DCM-4956
| US | Metric | |
| Rated Tonnage: | 550 tons | 500 tons |
| Tie Bar Diameter: | 5.5 inches | 139 mm |
| Clearance between Tie Bars: | 28 x 28 inches | 711 x 711 mm |
| Front Platen Size (T x W x H):** | 8.75 x 46 x 46 inches | 222 x 1168 x 1168 mm |
| Moving Platen Size (T x W x H):** | 7.75 x 46 x 46 inches | 222 x 1168 x 1168 mm |
| Die Thickness (minimum to maximum): | 18 - 32 inches | 457 - 812 mm |
| Die Stroke: | 19.5 inches | 495 mm |
| Shot Position Standard: | Inserted center, -6, -9 inches | Center, -152, -228 |
| Shot Cylinder Stroke: | 19 - 24 inches | 482 - 609 mm |
| Motor Size: | 60 HP | 44.76 Kw |
| Machine Size (L x W x H): | 22 x 7 x 8 feet | 6.70 x 2.13 x 2.49 meters |
| Machine Weight: | 55,000 pounds | 25,000 kg |
Video
Description
Used, Prince Model 528 CCA 550 U.S. Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Prince Binary II Shot Control System, Twin Cylinder Hydraulic Bumper Plate Ejection System, Automatic Tie Bar Puller on Top Helper Side Tie Bar, Air Safety Ratchet, Trabon Oil Type Automatic Lubrication System, Two Core Circuits on Moving Platen, Hydraulic Motorized Die Height Adjustment with Individual Tie Bar Adjustment System, Allen Bradley PLC Solid State controls, second Hand, DCM-4956
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
