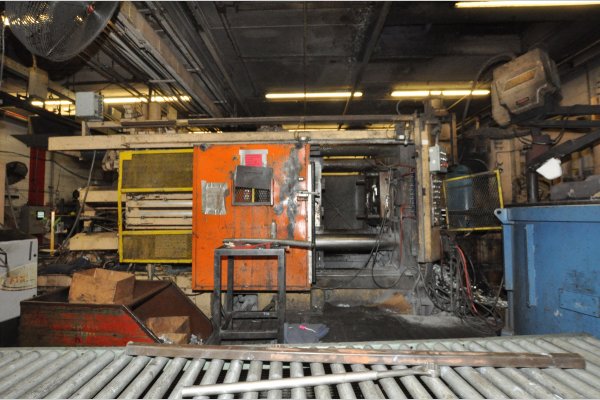

Used HPM Model: II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerHPM
ModelII-900-A
Size900 Ton
Inventory NumberDCM-4952

HPM - II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5 Series Solid State Programmable Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-4952.

Features & Accessories

  • Die Cast Machine #25
  • Top Operator Side Automatic Tie Bar Puller System
  • Allen Bradley SLC 5 Series Solid State Programmable Controls
  • Hydraulic Bumper Plate Ejection System; Hydraulic Powered Motorized Die Height Adjustment
  • Trabon Automatic Oil Type Lubrication System
  • Two (2) Auxiliary Hydraulic Side Core Circuits on fixed platen, one Core on Moving Platen

Item Specifications for DCM-4952

USMetric
Locking Force:900 tons816 tons
Tie Bar Diameter:8 inches203 mm
Clearance Between Tie Bars:38 x 38 inches965 x 965 mm
Die Thickness (minimum - maximum):16 - 40 inches406 - 1016 mm
Die Stroke (minimum - maximum):23 - 29 inches884 - 736 mm
Moving Platen Size:61 x 61 inches1549 x 1549 mm
Shot Positions (removable Insert):Center, -3, -6, -9 inchesCenter to -76.2, -152.4, -228.8 mm
Injection Cylinder Stroke:23 - 29 inches584 - 736 mm
Ejector Stroke & Force:5 inches & 23.6 tons127 mm & 21.4 tons
Main Motor Power:60 HP44.76 kw
Machine Size:31.1 x 8.6 x 11.5 feet9.48 x 2.62 x 3.51 meters
Machine Weight:103,000 pounds46,818 kg

Description

Used, HPM Model II-900-A 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Top Operator Side Automatic Tie Bar Puller System, Allen Bradley SLC 5 Series Solid State Programmable Controls, Hydraulic Bumper Plate Ejection System; Hydraulic Powered Motorized Die Height Adjustment, Trabon Automatic Oil Type Lubrication System, Two (2) Auxiliary Hydraulic Side Core Circuits on fixed platen, one Core on Moving Platen, Allen Bradley SLC 5 Series Solid State Programmable controls, second Hand, DCM-4952

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
