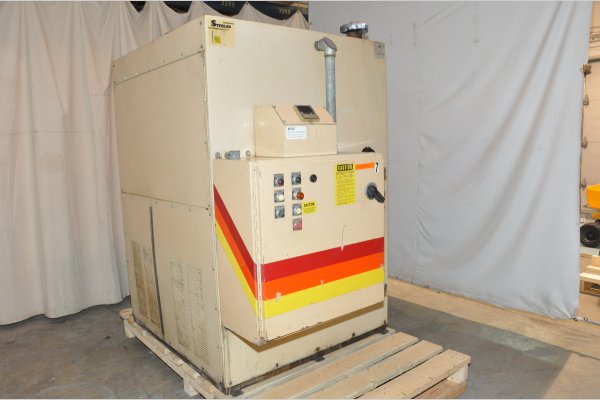

Used Sterlco Model: 6017-MX 50 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 13| Status | Sold |
|---|---|
| Manufacturer | Sterlco |
| Model | 6017-MX |
| Size | 50 KW |
| Inventory Number | DCM-4878 |
Sterlco - 6017-MX 50 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Barber Coleman 580 Controls
Questions? Call (847) 360-9170 and mention DCM-4878.
Features & Accessories
- Alarms for low fluid pressure, pump rotation, over temperature
- Set points for Process, High Alarm, Low Alarm
- Displays for Process Temperature, Return Temperature and Temperature Difference
- Barber Coleman 580 Controllers
Item Specifications for DCM-4878
| US | Metric | |
| Main Heater Power: | 50 kw | 50 kw |
| Pump Motor Size: | 15 HP | 11.18 kW |
| Flow Rate: | 90 GPM | 341 LPM |
| Connection size/type: | 3 inches | 76.2 mm |
| Maximum Operating Temperature: | 550 F | 287.7 C |
| Overall Size (L x W x H): | 68 x 57 x 76 inches | 1727.2 x 1447.8 x 1930.4 mm |
| Shipping Dimensions: | 84 x 51 x 84 inches | 2133 x 1295 x 2133 mm |
| Full Load Amps @ 480/3/60: | 79 amps | 79 amps |
Video
Description
Used, Sterlco Model 6017-MX 50 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Displays for Process Temperature, Return Temperature and Temperature Difference, Barber Coleman 580 Controllers, Barber Coleman 580 controls, second Hand, DCM-4878
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
