Used HPM Model: D-800-A 800 U.S. Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerHPM
ModelD-800-A
Size800 U.S. Ton
Inventory NumberDCM-4802

HPM - D-800-A 800 U.S. Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/01 Solid State Programmable Control and Visi-Trak SureTrak 2 Shot Control System Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-4802.

Features & Accessories

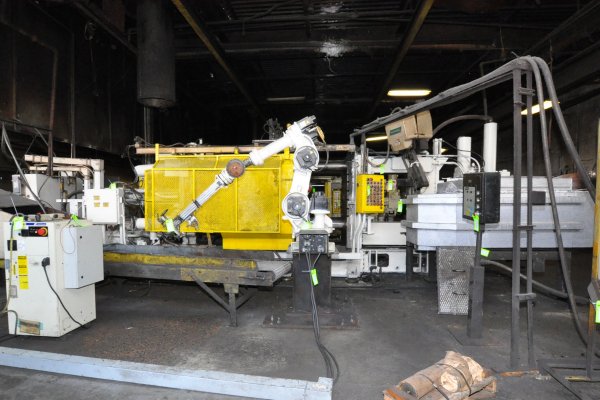

  • Available as a complete die cast cell including: Die Cast Machine, Rimrock 305 ladle, Cal-Miser natural gas low energy aluminum holding furnace, Kawasaki ZH-100U six axis robot for die spray and part extract. Premier Die Casting Company Die Cast Cell #1
  • Allen Bradley SLC 5/01 and Visi-Trak SureTrak 2 Shot Control & Monitoring System Controlling an Textron Olmsted Sero-valve
  • Hydraulic Motorized Die Height Adjustment System
  • One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen, One on Stationary Platen
  • Hydraulic Bumper Plate Ejection System
  • Trabon Oil Type Automatic Linkage Lubrication System
  • Air Safety Ratchet

Item Specifications for DCM-4802

USMetric
Locking Force:800 tons725 tons
Tie Bar Diameter:7 inches177 mm
Clearance Between Tie Bars:33 x 33 inches863 x 863 mm
Die Thickness (minimum - maximum):14 - 26.5 inches355 - 673 mm
Die Stroke (minimum - maximum):18 - 24 inches457 - 609 mm
Moving Platen Size (H x V x T):54 x 54 x 10 inches1371 x 1374 x 254 mm
Shot Positions (insert in platen):Center & -9 inches below centerCenter & -228 mm below center
Shot Intensification/Maximum Pressure:Multiplier Cylinder Intensification/4,500 PSIMultiplier Cylinder Intensification/310 BAR
Shot Cylinder Stroke:18 - 24 inches457 - 609 mm
Power:75 HP55 KW
Machine Size:8.3 x 27.4 feet2.53 x 8.35 meters
Machine Weight:70,000 pounds31,818 kg

Video

Description

Used, HPM Model D-800-A 800 U.S. Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Allen Bradley SLC 5/01 and Visi-Trak SureTrak 2 Shot Control & Monitoring System Controlling an Textron Olmsted Sero-valve, Hydraulic Motorized Die Height Adjustment System, One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen, One on Stationary Platen, Hydraulic Bumper Plate Ejection System, Trabon Oil Type Automatic Linkage Lubrication System, Air Safety Ratchet, Allen Bradley SLC 5/01 Solid State Programmable Control and Visi-Trak SureTrak 2 Shot Control System controls, second Hand, DCM-4802

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
