SOLD

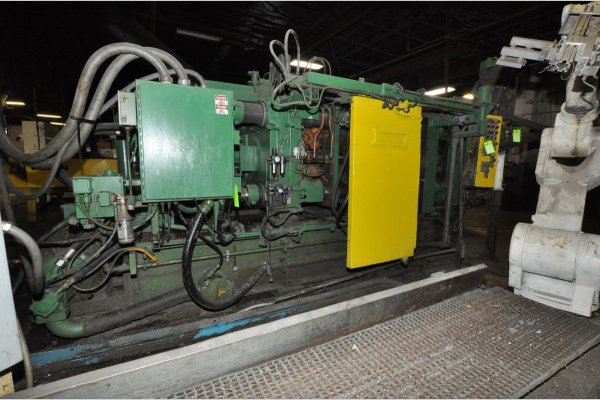

Used Prince Model: 525 CCA 500 U.S. Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerPrince
Model525 CCA
Size500 U.S. Ton
Inventory NumberDCM-4801

Prince - 525 CCA 500 U.S. Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/15 Solid State Programmable Controls with PanelView 900 and Visi-Trak True-Trak 20/20 Shot Monitoring System Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-4801.

Features & Accessories

  • Available as a complete die cast cell including: Die Cast Machine, Rimrock 305 ladle, Cal-Miser natural gas low energy aluminum holding furnace, Kawasaki FS-030 six axis robot for die spray and part extract. Premier Die Casting Company Die Cast Cell #9
  • Prince Binary I Shot Control with Visi-Trak True-Trak 20/20 Shot Monitoring System
  • Top Helper Side Automatic Tie Bar Pulling System
  • One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen
  • Hydraulic Motorized Die Height Adjustment, Twin Cylinder Hydraulic Bumper Plate Ejection System
  • Air Safety Ratchet Device, Trabon Oil Type Automatic Lubrication System
  • Allen Bradley PLC 5/15 Solid State Programmable Controls with PanelView 900 and Visi-Trak True-Trak 20/20 Shot Monitoring System

Item Specifications for DCM-4801

USMetric
Rated Tonnage:500 tons454 tons
Tie Bar Diameter:5.5 inches139 mm
Clearance between Tie Bars:24.5 x 24.5 inches622 x 622 mm
Front Platen Size (T x W x H)8.75 x 42 x 48 inches222 x 1,066 x 1,219 mm
Moving Platen Size (T x W x H):7.75 x 42 x 42 inches196 x 1,066 x 1,066 mm
Die Thickness (minimum to maximum):14 - 28 inches355 - 711 mm
Die Stroke:14.250 inches362 mm
Shot Position Standard:Center and -6 inches, InsertedCenter and -152 mm, Inserted
Shot Cylinder Stroke:16 - 20 inches406 - 508 mm
Motor Size:50 HP37 Kw
Machine Size (L x W x H):22 x 7 x 8 feet6.70 x 2.13 x 2.49 meters
Machine Weight:45,000 pounds20,455 kg

Video

Documents

Description

Used, Prince Model 525 CCA 500 U.S. Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Prince Binary I Shot Control with Visi-Trak True-Trak 20/20 Shot Monitoring System, Top Helper Side Automatic Tie Bar Pulling System, One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen, Hydraulic Motorized Die Height Adjustment, Twin Cylinder Hydraulic Bumper Plate Ejection System, Air Safety Ratchet Device, Trabon Oil Type Automatic Lubrication System, Allen Bradley PLC 5/15 Solid State Programmable Controls with PanelView 900 and Visi-Trak True-Trak 20/20 Shot Monitoring System, Allen Bradley PLC 5/15 Solid State Programmable Controls with PanelView 900 and Visi-Trak True-Trak 20/20 Shot Monitoring System controls, second Hand, DCM-4801

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
