Used Prince Model: 629 CCA 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerPrince
Model629 CCA
Size650 Ton
Inventory NumberDCM-4787

Prince - 629 CCA 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Solid State Programmable Control with PanelView HMI and Visi-Trak Sure-Trak 2 shot control system Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-4787.

Features & Accessories

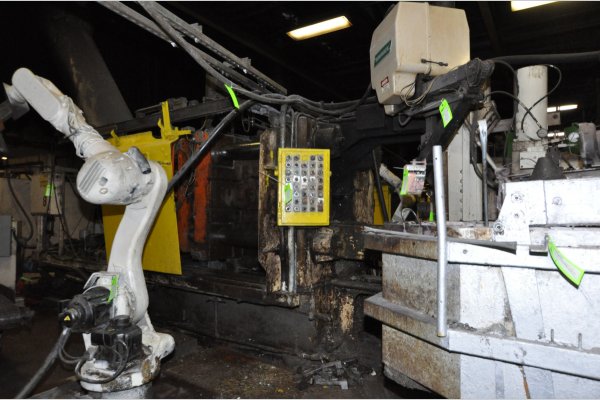

  • Available as a complete die cast cell including: Die Cast Machine, Rimrock 305 ladle, Cal-Miser natural gas low energy aluminum holding furnace, Kawasaki RS-080N six axis robot for die spray and part extract. Premier Die Casting Company Die Cast Cell #8
  • Machine was Rebuilt by Die Cast Press and upgraded to Visi-Trak Sure-Trak 2 controlling a Textron Olmsted Servo Valve
  • Allen Bradley SLC 5/03 Controls
  • Twin Cylinder Hydraulic Bumper Plate Ejection System, One (1) auxiliary hydraulic side core circuits on moving platen
  • Hydraulic Adjustment of Shot Position, Adjustable Shot Stroke
  • Hydraulic Motorized Die Height Adjustment System
  • Air Safety Ratchet, Trabon Automatic Lubrication System

Item Specifications for DCM-4787

USMetric
Rated Tonnage:650 tons589 tons
Tie Bar Diameter:6.75 inches171 mm
Clearance between Tie Bars:29.25 x 29.25 inches742 x 742 mm
Front Platen Size (T x W x H):10.75 x 51 x 58 inches273 x 1295 x 1473 mm
Moving Platen Size (T x W x H):9.75 x 51 x 53 inches247 x 1295 x 1346 mm
Die Thickness (minimum to maximum):16 - 36 inches406 - 914 mm
Die Stroke:17 inches431 mm
Shot Position Standard:Inserted center and -6Center and -152 mm
Shot Cylinder Stroke:19 - 24 inches482 - 609 mm
Motor Size:60 HP44.76 Kw
Machine Size (L x W x H):26 x 7.5 x 9 feet7.92 x 2.29 x 2.74 meters
Machine Weight:64,000 pounds29,029 kg

Video

Description

Used, Prince Model 629 CCA 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Machine was Rebuilt by Die Cast Press and upgraded to Visi-Trak Sure-Trak 2 controlling a Textron Olmsted Servo Valve, Allen Bradley SLC 5/03 Controls, Twin Cylinder Hydraulic Bumper Plate Ejection System, One (1) auxiliary hydraulic side core circuits on moving platen, Hydraulic Adjustment of Shot Position, Adjustable Shot Stroke, Hydraulic Motorized Die Height Adjustment System, Air Safety Ratchet, Trabon Automatic Lubrication System, Allen Bradley SLC 5/03 Solid State Programmable Control with PanelView HMI and Visi-Trak Sure-Trak 2 shot control system controls, second Hand, DCM-4787
