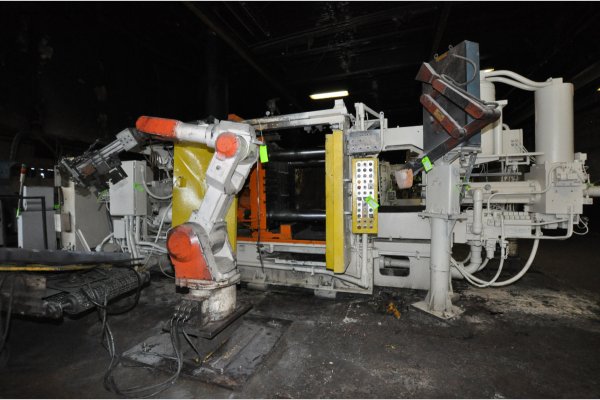

Used Prince Model: 629 CCA 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 24| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 629 CCA |
| Size | 650 Ton |
| Inventory Number | DCM-4786 |
Prince - 629 CCA 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Solid State Programmable Control with PanelView 550 HMI and Visi-Trak TrueTrak 20/20 Shot Monitoring System Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4786.
Features & Accessories
- Available as a complete die cast cell including: Die Cast Machine, Advance Products ladle, Cal-Miser natural gas low energy aluminum holding furnace, Kawasaki FS-060 six axis robot for die spray and part extract. Die Cast Cell #3
- C-Frame Shot End with Hydraulic Shot Position Adjustment and Prince Binary II proportional shot system with 3,000 PSI Intensification Circuit Pressure
- Allen Bradley SLC 5/03 Solid State Programmable Control with PanelView 550 HMI and Visi-Trak TrueTrak 20/20 Shot Monitoring System
- Twin Cylinder Hydraulic Bumper Plate Ejection System
- Top Operator Side Automatic Tie Bar Pulling System
- Hydraulic Motorized Die Height Adjustment System
- One (1) auxiliary hydraulic side core circuit on moving Platen
Item Specifications for DCM-4786
| US | Metric | |
| Rated Tonnage: | 650 tons | 589 tons |
| Tie Bar Diameter: | 6.75 inches | 171 mm |
| Clearance between Tie Bars: | 29.25 x 29.25 inches | 742 x 742 mm |
| Front Platen Size (T x W x H): | 10.75 x 51 x 58 inches | 273 x 1295 x 1473 mm |
| Moving Platen Size (T x W x H): | 9.75 x 51 x 53 inches | 247 x 1295 x 1346 mm |
| Die Thickness (minimum to maximum): | 14 - 36 inches | 355 - 914 mm |
| Die Stroke: | 17 inches | 431 mm |
| Shot Position Standard: | Inserted - Center and -6 | Inserted - Center and -152 mm |
| Shot Cylinder Stroke: | 19 - 24 inches | 482 - 609 mm |
| Motor Size: | 60 HP | 44.76 Kw |
| Machine Size (L x W x H): | 26 x 7.5 x 9 feet | 7.92 x 2.29 x 2.74 meters |
| Machine Weight: | 64,000 pounds | 29,029 kg |
Video
Documents
- 067207E General Information - DCM 4786PDF · 191 KB
Description
Used, Prince Model 629 CCA 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: C-Frame Shot End with Hydraulic Shot Position Adjustment and Prince Binary II proportional shot system with 3,000 PSI Intensification Circuit Pressure, Allen Bradley SLC 5/03 Solid State Programmable Control with PanelView 550 HMI and Visi-Trak TrueTrak 20/20 Shot Monitoring System, Twin Cylinder Hydraulic Bumper Plate Ejection System, Top Operator Side Automatic Tie Bar Pulling System, Hydraulic Motorized Die Height Adjustment System, One (1) auxiliary hydraulic side core circuit on moving Platen, Allen Bradley SLC 5/03 Solid State Programmable Control with PanelView 550 HMI and Visi-Trak TrueTrak 20/20 Shot Monitoring System controls, second Hand, DCM-4786
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
