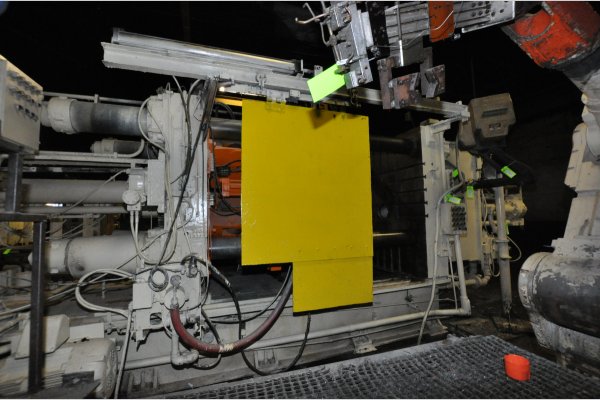

Used Prince Model: 836 CCA 850 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 20| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 836 CCA |
| Size | 850 U.S. Tons |
| Inventory Number | DCM-4785 |
Prince - 836 CCA 850 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Relay Controls with Visi-Trak SureTrak 2 controlling a Textron Olmsted Servo Valve Shot System Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4785.
Features & Accessories
- Available as a complete die cast cell including: Die Cast Machine, Rimrock 305 ladle, Cal-Miser low energy aluminum holding furnace, Kawasaki FS-060 six axis robot for die spray and part extract. Premier Die Casting Company Die Cast Cell #4
- Visi-Trak SureTrak 2 Shot Control & Monitoring System Controlling a Textron Olmsted Sero-valve
- Hydraulic Bumper Plate Ejection System
- Electric Motorized Die Height Adjustment System
- Two (2) auxiliary hydraulic side core circuits, One (1) on Moving Platen and One (1) on stationary Platen
- Inserted Shot Position (removable shot position block) allows for multiple shot positions - Currently set for Center and -9
Item Specifications for DCM-4785
| US | Metric | |
| Rated Tonnage: | 850 tons | 772 tons |
| Tie Bar Diameter: | 7.5 inches | 190.5 mm |
| Clearance Between Tie bars: | 36.5 x 36.5 inches | 927.1 x 927.1 mm |
| Front Platen Size (T x W x H): | 12.75 x 60 x 70 inches | 323.9 x 1524 x 1524 |
| Moving Platen Size (T x W x H): | 11.75 x 60 x 60 inches | 298.5 x 1524 x 1524 |
| Die Thickness (min. - max.): | 18 - 41 inches | 451 - 1.041 mm |
| Die Stroke: | 22 inches | 558.8 mm |
| Ejection Stroke: | 6 inches | 152.4 |
| Injection Cylinder Bore/Stroke/Pressure: | 8 x 30 inches & 3,000 P.S.I | 203.2 mm x 762 mm & 206 BAR |
| Injection Positions (Inserted): | 0 & -9 inches below center | 0 & -228 mm below center |
| Motor Size: | 75 HP | 55.16 kw |
| Machine Size (L x W x H): | 28 x 8 x 11 feet | 8.5 x 2.4 x 3.4 meters |
Video
Documents
Description
Used, Prince Model 836 CCA 850 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Visi-Trak SureTrak 2 Shot Control & Monitoring System Controlling a Textron Olmsted Sero-valve, Hydraulic Bumper Plate Ejection System, Electric Motorized Die Height Adjustment System, Two (2) auxiliary hydraulic side core circuits, One (1) on Moving Platen and One (1) on stationary Platen, Inserted Shot Position (removable shot position block) allows for multiple shot positions - Currently set for Center and -9, Relay Controls with Visi-Trak SureTrak 2 controlling a Textron Olmsted Servo Valve Shot System controls, second Hand, DCM-4785
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
