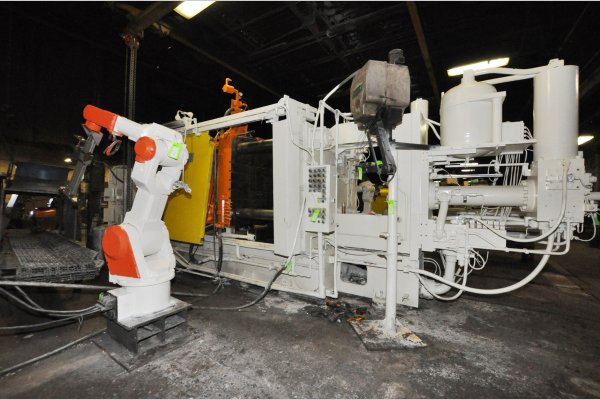

Used Prince Model: 836 CCA 900 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 21| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 836 CCA |
| Size | 900 U.S. Tons |
| Inventory Number | DCM-4777 |
Prince - 836 CCA 900 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/30 with Prince Pro-Link System Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4777.
Features & Accessories
- Available as a complete die cast cell including: Die Cast Machine, Rimrock 305 ladle, Cal-Miser natural gas low energy aluminum holding furnace, Kawasaki FS-060L series six axis robot for die spray and part extract. Die Cast Cell #6
- Equipped with Prince PrinceLink, Binary II Shot System with 4,500 PSI (310 BAR) Shot Intensification
- Allen Bradley PLC 5/30 with Prince Pro-Link Machine Human Machine Interface
- Hydraulic Bumper Plate Ejection System
- Hydraulic Motorized Die Height Adjustment System
- One (1) auxiliary hydraulic side core circuits on Moving Platen
- Top Helper-Side Automatic Tie Bar Pulling - Inserted Shot Position (removable shot position block) allows for multiple shot positions
Item Specifications for DCM-4777
| US | Metric | |
| Rated Tonnage: | 900 tons | 816.5 tons |
| Tie Bar Diameter: | 7.5 inches | 190.5 mm |
| Clearance Between Tie bars: | 36.5 x 36.5 inches | 927.1 x 927.1 mm |
| Front Platen Size (T x W x H): | 12.75 x 60 x 70 inches | 323.9 x 1524 x 1524 |
| Moving Platen Size (T x W x H): | 11.75 x 60 x 60 inches | 298.5 x 1524 x 1524 |
| Die Thickness (min. - max.): | 18 - 41 inches | 457 - 1,041 mm |
| Die Stroke: | 22 inches | 558.8 mm |
| Ejection Stroke: | 6 inches | 152.4 |
| Injection Cylinder Bore/Stroke: | 8 x 30 inches | 203.2 mm x 762 mm |
| Injection Positions (Inserted): | Center & -9 inches below center | Center & -228 mm below center |
| Motor Size: | 75 HP | 55.16 kw |
| Machine Size (L x W x H): | 28 x 8 x 11 feet | 8.5 x 2.4 x 3.4 meters |
Video
Description
Used, Prince Model 836 CCA 900 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Equipped with Prince PrinceLink, Binary II Shot System with 4,500 PSI (310 BAR) Shot Intensification, Allen Bradley PLC 5/30 with Prince Pro-Link Machine Human Machine Interface, Hydraulic Bumper Plate Ejection System, Hydraulic Motorized Die Height Adjustment System, One (1) auxiliary hydraulic side core circuits on Moving Platen, Top Helper-Side Automatic Tie Bar Pulling - Inserted Shot Position (removable shot position block) allows for multiple shot positions, Allen Bradley PLC 5/30 with Prince Pro-Link System controls, second Hand, DCM-4777
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
