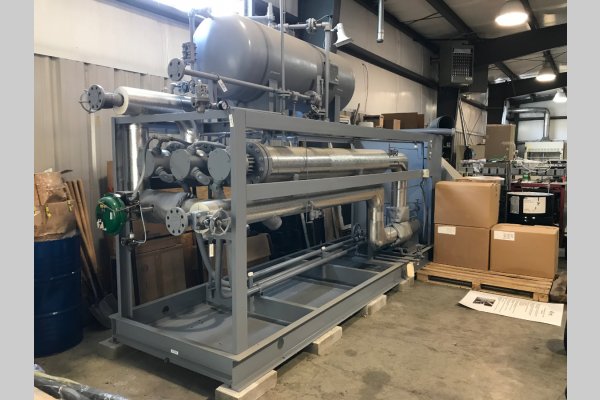

Used Budzar Industries Model: 10T-180145-GOH-SP 180 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit

StatusSold
ManufacturerBudzar Industries
Model10T-180145-GOH-SP
Size180 KW
Inventory NumberDCM-4766

Budzar Industries - 10T-180145-GOH-SP 180 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit, Carel PCo Sistema PLC with Partlow 1160+ Digital Temperature Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-4766.

Features & Accessories

  • New in 2013 - Unit Was Never placed into operation
  • Rated for Ultra-High-Temperature Applications to 750 degree Fahrenheit/398 centigrade
  • Equipped with Watlow DIN-A-MITE Solid Stare Power Controllers for Control of Heating Elements
  • Partlow 1160+ Digital Temperature Controller/HMI
  • Equipped with 135 gallon process expansion tank
  • Compatible with Dowtherm A thermal fluid
  • Skid-Mounted Package Design for Fast Easy Installation - Full set of drawings, schematics and service manuals available

Item Specifications for DCM-4766

USMetric
Main Heater Power (60 kw per heater):60/120/180 kw Selectable60/120/180 kw Selectable
Pump Motor Size:7.5 HP5.59275 kW
Flow Rate:145 gallons per minute548 liters per minute
Total Dynamic Head (TDH) Rating:93 feet28.3 meters
Connection size/type:2 inch ANSI R.F. (Flange)2 inch ANSI R.F. (Flange)
Maximum Operating Temperature:750 F398 C
Full Load Amps @ 460/3/60:238 amp238 amp
Overall Size (L x W x H):56 x 187 x 109 inches1422 x 4749 x 2768 mm
Shipping Weight:4200 pounds1905 kg

Documents

Description

Used, Budzar Industries Model 10T-180145-GOH-SP 180 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit For_Sale, Features Include: Rated for Ultra-High-Temperature Applications to 750 degree Fahrenheit/398 centigrade, Equipped with Watlow DIN-A-MITE Solid Stare Power Controllers for Control of Heating Elements, Partlow 1160+ Digital Temperature Controller/HMI, Equipped with 135 gallon process expansion tank, Compatible with Dowtherm A thermal fluid, Skid-Mounted Package Design for Fast Easy Installation - Full set of drawings, schematics and service manuals available, Carel PCo Sistema PLC with Partlow 1160+ Digital Temperature controls, second Hand, DCM-4766

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
